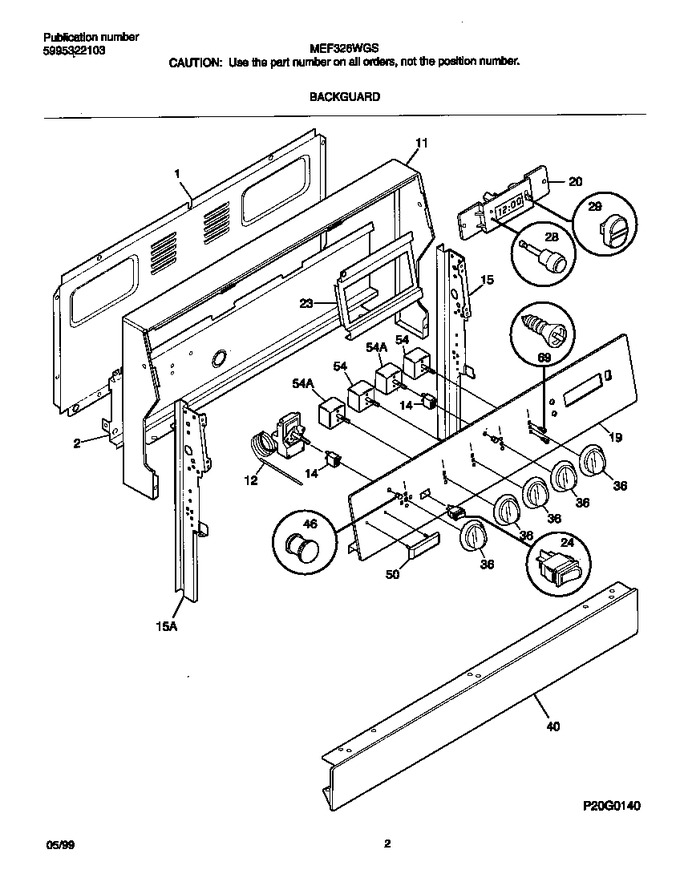

02 - Backguard


03 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316061852		Trim-wrapper,textured ,white		Appelez-nous	-
12	316032401		Thermostat-oven		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
14	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316076588		Panel-control,metal ,white		Appelez-nous	-
20	316113200		Clock-timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
28	316017303		Button-clock,white , Clock Set				$ 53.76
29	316028402		Button-selector, Clock/timer, White				$ 48.72
40	316064030		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
50	316096901		Nameplate, White				$ 9.82
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
*17480	316003018		Instructions,installation		Appelez-nous	-
*17481	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*17482	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*17484	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
36A	316025106		Knob-control, Infinite Sw, White				$ 57.64
36B	316109601		Knob-thermostat		Appelez-nous	-
