SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


05 - Top/drawer

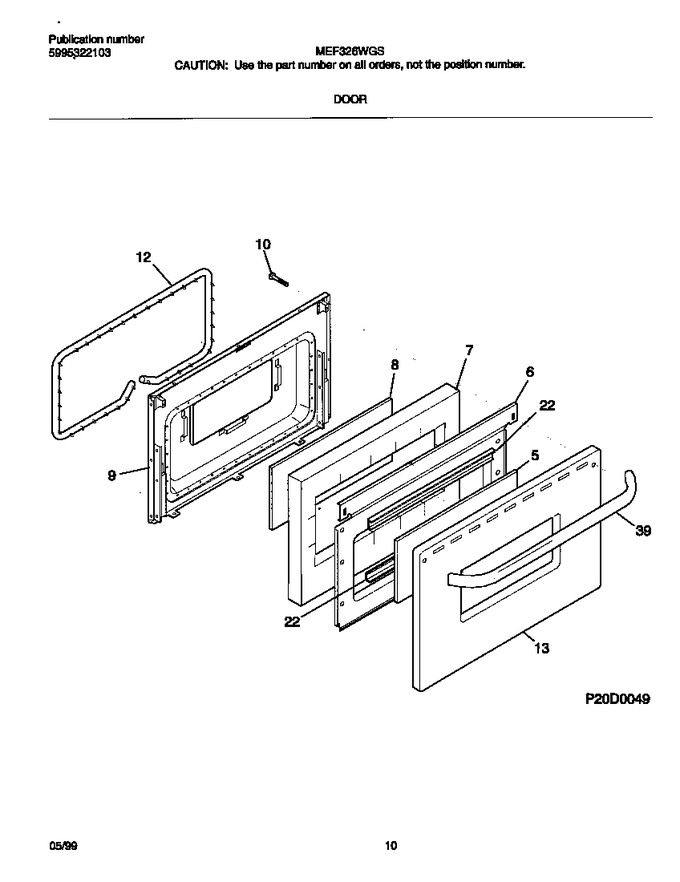

06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	316050300		Glass,oven Door ,white ,outer		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3017081		Panel, Oven Door, White		Appelez-nous	-
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
22	5303272476		Retainer,glass ,(2) ,angle		Appelez-nous	-
39	5304530039		Handle-door, White, Oven   (Replaces: 316091115)			Immediately	$ 167.43
*17513	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*17514	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*17515	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*17516	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*17517	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34

    View Diagram in Separate Window       Print Part List
