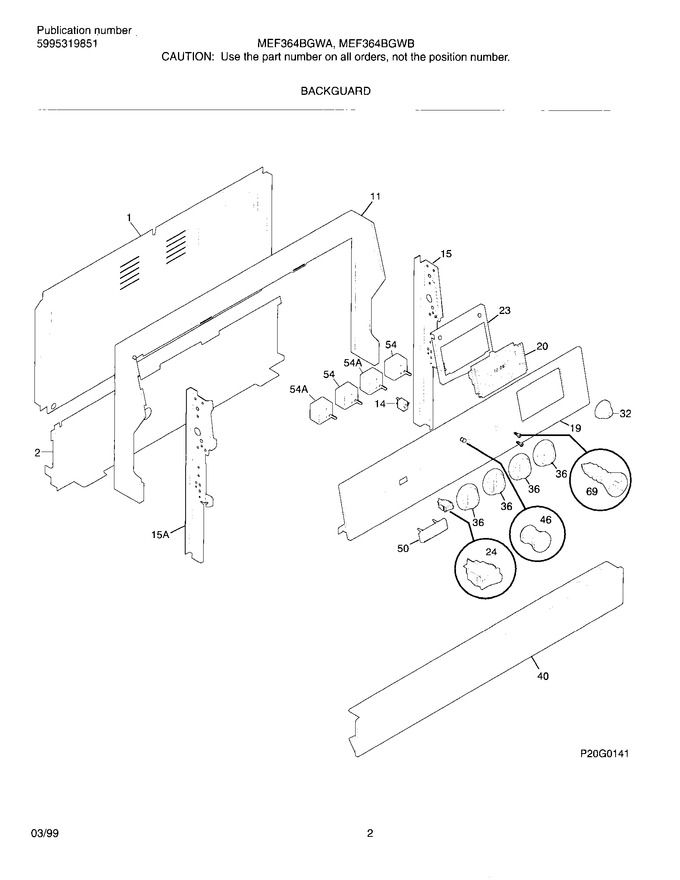

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316061851		Trim-wrapper,textured ,black		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316076592		Panel-control,metal		Appelez-nous	-
20	316101103		Clock/timer, Trimline, Dial 3				$ 299.30
20	316101508		Overlay-clock		Appelez-nous	-
23	316100400		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	316101400		Knob-thermostat		Appelez-nous	-
36	316025108		Knob-control, Infinite Sw, Black		Appelez-nous	-
39	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
40	316064009		Panel-manifold,black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
	316085600		Insulator-shield Thermostt		Appelez-nous	-
	316003018		Instructions,installation		Appelez-nous	-
	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
15A	316023109		Support,backguard ,lh		Appelez-nous	-
54A	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
