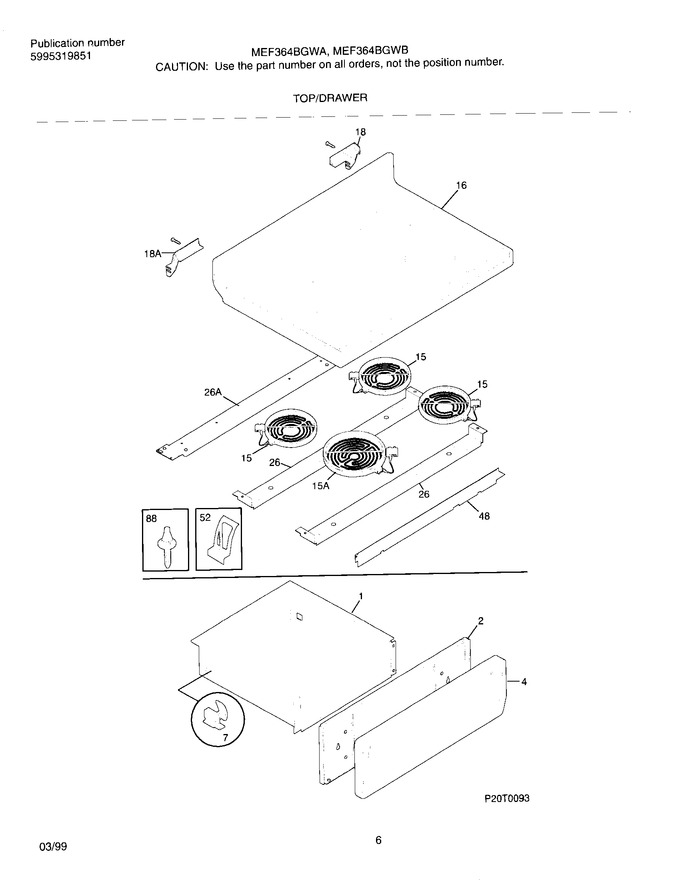

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-pnl		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318198834		Element-surface,radiant , Large/8 Inch ,2100w,limit Sw I   (Replaces: 316010204)				$ 205.36
16	316098138		Main Top,glass		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
88	316099500		Pin,guide ,(2)				$ 6.53
	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
	316089600		Spacer-drawer, (2)		Appelez-nous	-
	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
	5309951550		Cleaner-cooktop		Appelez-nous	-
15B	318198817		Element-surface, Radiant, Small/6 Inch, 1200w, Limit Sw   (Replaces: 316010203)			Immediately	$ 192.78
18A	5303273063		Hinge-main Top (lh)				$ 48.41
26A	316099201		Bracket-support, Chassis		Appelez-nous	-
