SELECT A DIAGRAM

01 - Cover

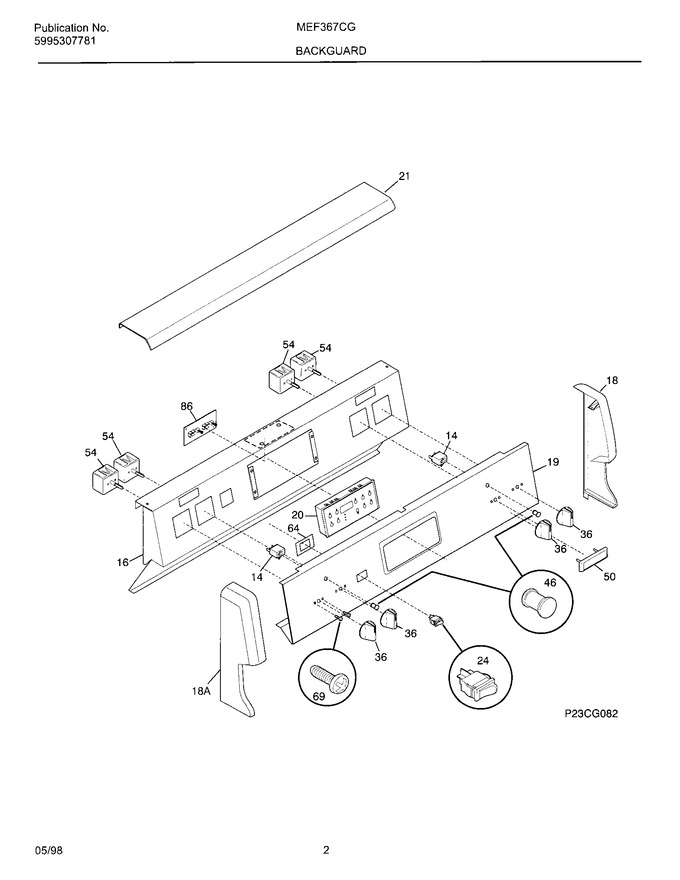

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	3200297		Light-lamp/indicator		Appelez-nous	-
16	318117426		Panel Control,instrument Mtg		Appelez-nous	-
18	318118300		End Cap,white ,rh		Appelez-nous	-
19	318117156		Panel-control,metal		Appelez-nous	-
20	318013010		Clock/timer,electronic ,white		Appelez-nous	-
21	318118000		Trim-canopy/shield,white		Appelez-nous	-
24	5304527842		Switch-rocker, White, Oven Light   (Replaces: 316005607)			Immediately	$ 16.13
36	318017110		Knob,control ,white				$ 43.00
46	318228310		Lens-light/lamp, Indicator   (Replaces: 5303297274)			Immediately	$ 22.91
50	318146600		Nameplate,white				$ 8.82
54	318120500		Switch-surface Unit				$ 186.80
64	318112200		Plate-mtg Rocker Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
86	318111201		Plate-connecting		Appelez-nous	-
	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
	318075703		Insert-nameplate Frigidaire		Appelez-nous	-
	318075707		Label,nameplete(gibson)		Appelez-nous	-
	5303300265		Screw, 8-18 X 1/2				$ 15.17
18A	318118301		End Cap,white ,lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
