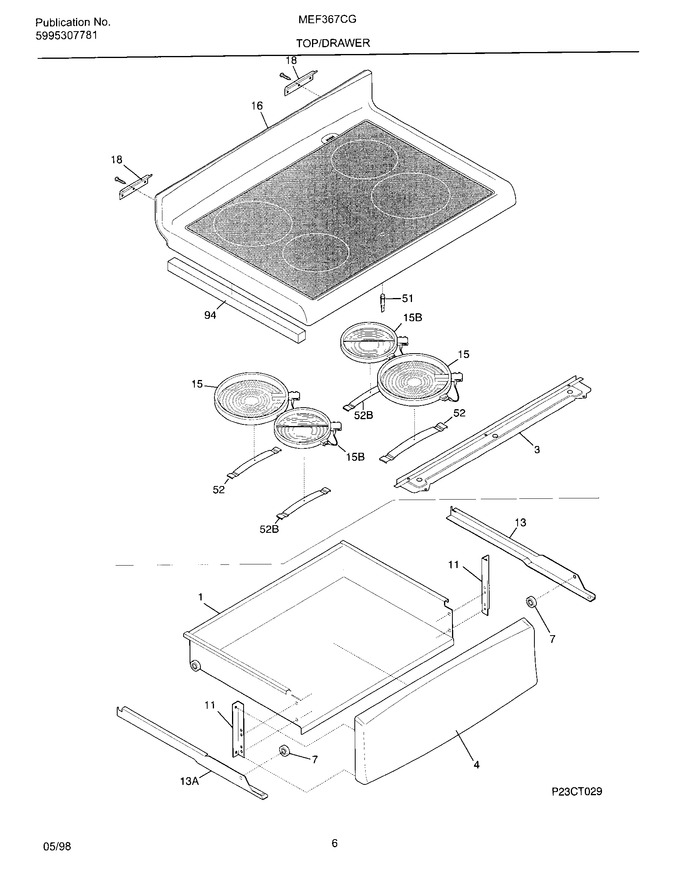

07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505701 | Drawer-utility (Replaces: 318107103) |
|
Immediately | $ 143.39 | ||||
| 3 | 318144301 | Support-main Top |
|
- | |||||
| 4 | 318044301 | Panel-drawer,white |
|
- | |||||
| 7 | 5303324497 | Spacer |
|
- | |||||
| 11 | 318107500 | Bracket-support Drawer |
|
$ 21.85 | |||||
| 13 | 318018100 | Channel-drawer,rh |
|
Immediately | $ 30.01 | ||||
| 15 | 318198834 | Element-surface, 2100 W, Large/8 Inch (Replaces: 316010204) |
|
$ 205.36 | |||||
| 16 | 318043864 | Maintop & Glass Assy,glass |
|
- | |||||
| 18 | 318074400 | Hinge-main Top |
|
- | |||||
| 51 | 530297484 | Light Indicator Hot Surface |
|
- | |||||
| 52 | 318122003 | Spring Element |
|
- | |||||
| 94 | 318132608 | Insulation-top |
|
- | |||||
| 5303131801 | Screw, 10 X 3/8 |
|
- | ||||||
| 13A | 318018101 | Channel-drawer,lh |
|
$ 63.11 | |||||
| 15B | 318198817 | Element-surface, 1200 W, Small/6 Inch (Replaces: 316010203) |
|
Immediately | $ 192.78 | ||||
| 52B | 318122000 | Spring Element |
|
- |
