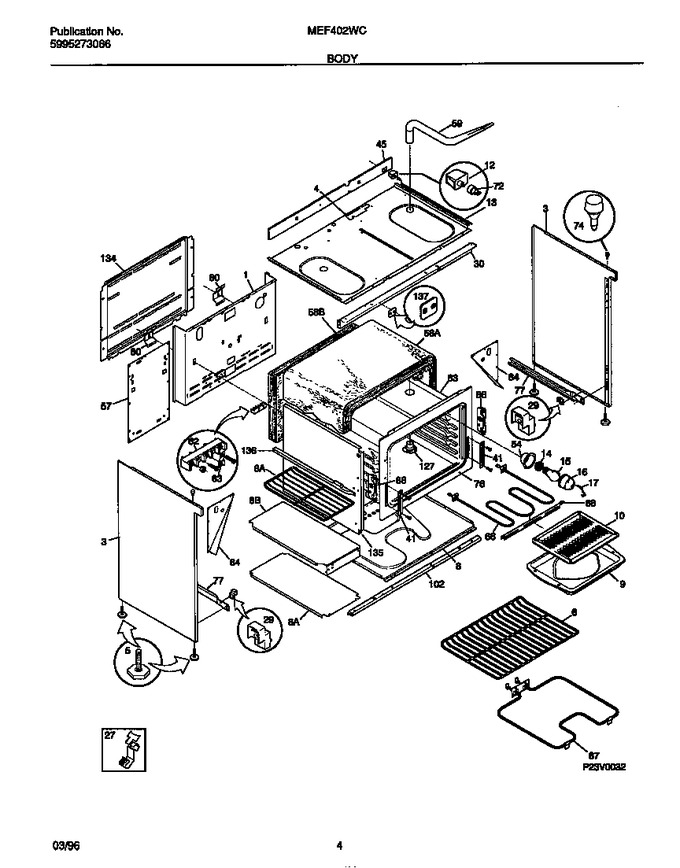

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303310527 | Back-main |
|
- | |||||
| 3 | 5308012528 | Panel-bodyside, White, Lh |
|
- | |||||
| 3 | 5308012527 | Panel-bodyside, White, Rh |
|
- | |||||
| 4 | 318073701 | Burner Box |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 6 | 08011960 | Rack-oven, Small |
|
- | |||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 8 | 318071900 | Panel-oven Bottom |
|
- | |||||
| 8 | 5303311141 | Panel-oven Bottom |
|
- | |||||
| 8 | K1315129 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303310521 | Pan-broiler |
|
- | |||||
| 10 | 5303310520 | Insert-broiler Pan |
|
- | |||||
| 12 | 08003081 | Switch-latch |
|
- | |||||
| 13 | 5303305163 | Rod-light Switch |
|
- | |||||
| 14 | 316116400 | Socket-light/lamp, Oven (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 27 | 3051552 | Clip-thermo Bulb |
|
- | |||||
| 29 | 3051654 | Guide-drawer, Front |
|
- | |||||
| 30 | 318023901 | Bracket-hinge, Main Top |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 45 | 318057400 | Shield-wire |
|
- | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 57 | 318055700 | Panel-back |
|
- | |||||
| 58 | 5303310516 | Insulation, Oven Back |
|
- | |||||
| 58 | 5303310519 | Insulation, Oven Wrapper |
|
- | |||||
| 59 | 318072501 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 72 | 08007444 | Cover-rod End |
|
- | |||||
| 74 | 08003107 | Spacer-cooktop |
|
- | |||||
| 76 | 318056001 | Frame-front |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 5303310523 | Liner-oven, Comp. |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 102 | 08011954 | Support-oven Front |
|
$ 47.60 | |||||
| 127 | 5303310525 | Adaptor Assy |
|
- | |||||
| 134 | 5303310515 | Cover-wiring |
|
$ 368.97 | |||||
| 135 | 318072401 | Partition-center |
|
- | |||||
| 136 | 5301315199 | Glide-storage Rack |
|
- | |||||
| 137 | 3204318 | Plate-strike |
|
- | |||||
| *11081 | 3203575 | Anti-tip Bracket |
|
- | |||||
| *11082 | 3203576 | Anti-tip Bracket |
|
- | |||||
| 63A | 5303310517 | Plate,ground Strap |
|
- | |||||
| 63B | 316205500 | Nut, Hex, 10-32 (not Illustrated) (Replaces: 5303308427) |
|
$ 11.34 | |||||
| 77A | 318018000 | Rail-drawer Rh |
|
- | |||||
| 77B | 318018001 | Rail-drawer Lh |
|
- | |||||
| 84A | 3204823 | Gusset, Rear, Lh |
|
- | |||||
| 84B | 3204822 | Gusset-rear, Rh (not Illustrated) |
|
- |
