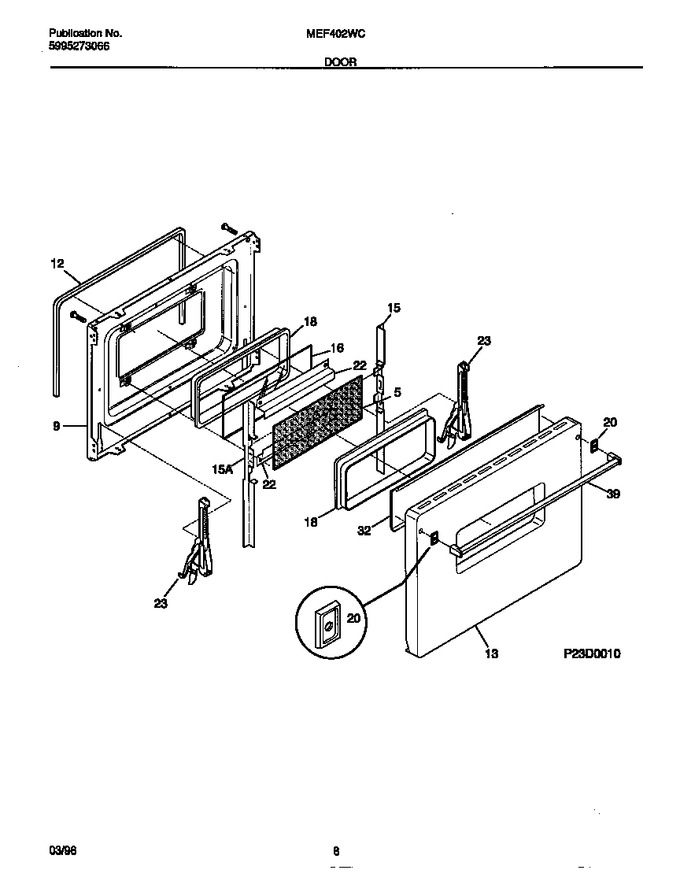

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door, Inner		Appelez-nous	-
9	318048701		Liner-oven Door		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 318053101)			Immediately	$ 150.03
13	318009101		Panel-oven Door		Appelez-nous	-
15	318024002		Bracket-glass Mtg, Rh		Appelez-nous	-
15	318024003		Bracket-glass Mtg, Lh		Appelez-nous	-
16	5303310507		Glass-oven Door, Heat Barrier		Appelez-nous	-
18	5303310505		Seal-rope		Appelez-nous	-
20	5303310504		Spacer-handle, Small Oven, (2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310506		Hinge Assy		Appelez-nous	-
32	5303310509		Deflector		Appelez-nous	-
39A	5303304012		Handle-door, Oven		Appelez-nous	-
39B	5303310510		Screw-handle Mtg (not Illustrated)				$ 14.18
