SELECT A DIAGRAM

01 - Cover


02 - Door

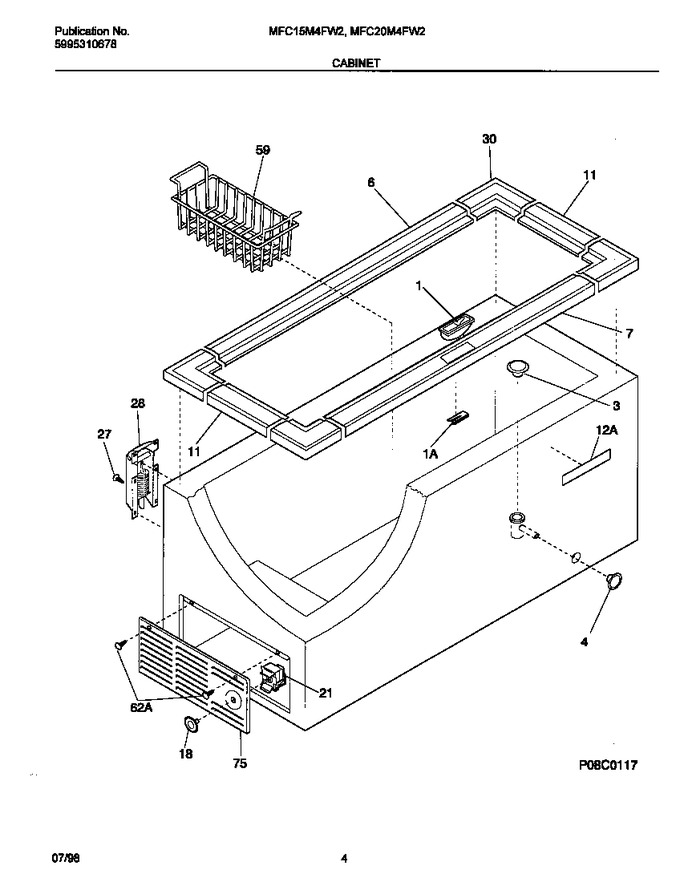

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208488		Latch, Door		Appelez-nous	-
3	216073900		Plug-drain,interior		Appelez-nous	-
4	216502600		Plug-drain,exterior			Immediately	$ 17.35
6	216111200		Breaker, Hinge Side		Appelez-nous	-
7	216111800		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker Ends		Appelez-nous	-
18	216591602		Knob,temp Control		Appelez-nous	-
21	216532100		Control-temp				$ 9.70
27	216337700		Screw		Appelez-nous	-
28	216035300		Hinge		Appelez-nous	-
30	216110700		Breaker Corners				$ 28.45
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw		Appelez-nous	-
75	216034301		Panel-access				$ 103.01
*92801	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
1 A	216080800		Support, Lock		Appelez-nous	-
12A	216373000		Frame-nameplate				$ 4.04

    View Diagram in Separate Window       Print Part List
