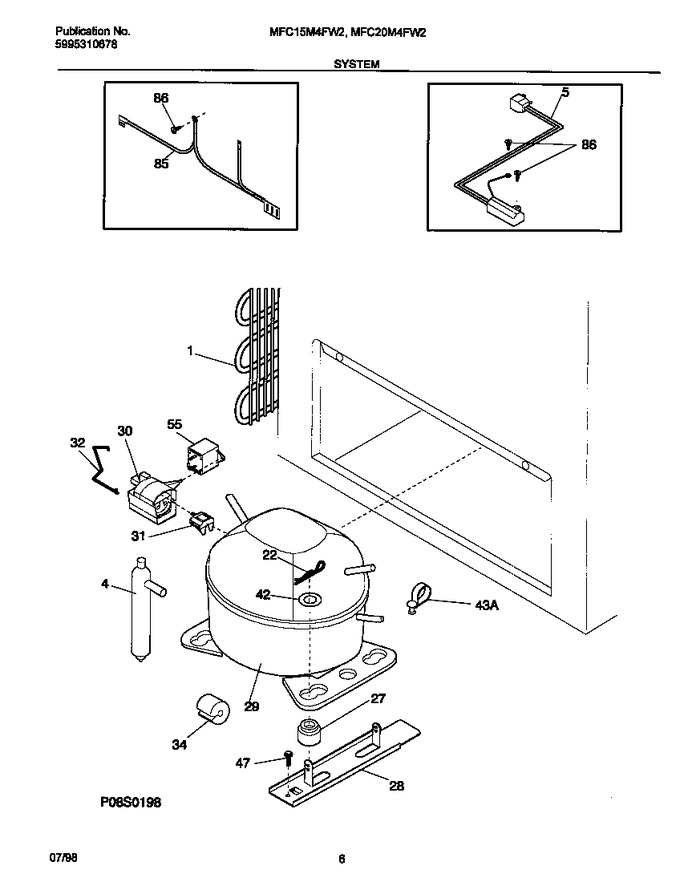

04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303280307 | Condenser |
|
$ 640.71 | |||||
| 4 | 5303305677 | Drier, Filter (Replaces: 216099900) |
|
Immediately | $ 31.67 | ||||
| 5 | 216551600 | Harness-wire |
|
$ 135.35 | |||||
| 22 | 216056400 | Clip, Spring Mtg |
|
- | |||||
| 27 | 216498900 | Grommet-comp (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 28 | 5303212615 | Support-comp |
|
- | |||||
| 29 | 5304511983 | Compressor, R134a, With Overload (Replaces: 5303925326) |
|
$ 671.86 | |||||
| 30 | 216008900 | Starter-ptc |
|
- | |||||
| 31 | 216100108 | Overload Protector |
|
$ 38.12 | |||||
| 32 | 216158300 | Clip-starter |
|
- | |||||
| 34 | 5303298960 | Spacer, Compressor |
|
- | |||||
| 42 | 216232700 | Washer-flat |
|
- | |||||
| 47 | 08016776 | Screw-compressor |
|
- | |||||
| 55 | 5304464438 | Capacitor-run (Replaces: 216236200) |
|
Immediately | $ 35.38 | ||||
| 85 | 216533500 | Wire,ground |
|
- | |||||
| 86 | 216036600 | Screw |
|
- | |||||
| *92802 | 216478900 | Fastener, Energy Guide |
|
- | |||||
| 43A | 5303212614 | Clip Harness |
|
$ 2.88 |
