SELECT A DIAGRAM

01 - Cabinet, Literature, Unit


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Section


12 - Ice Maker, Optional

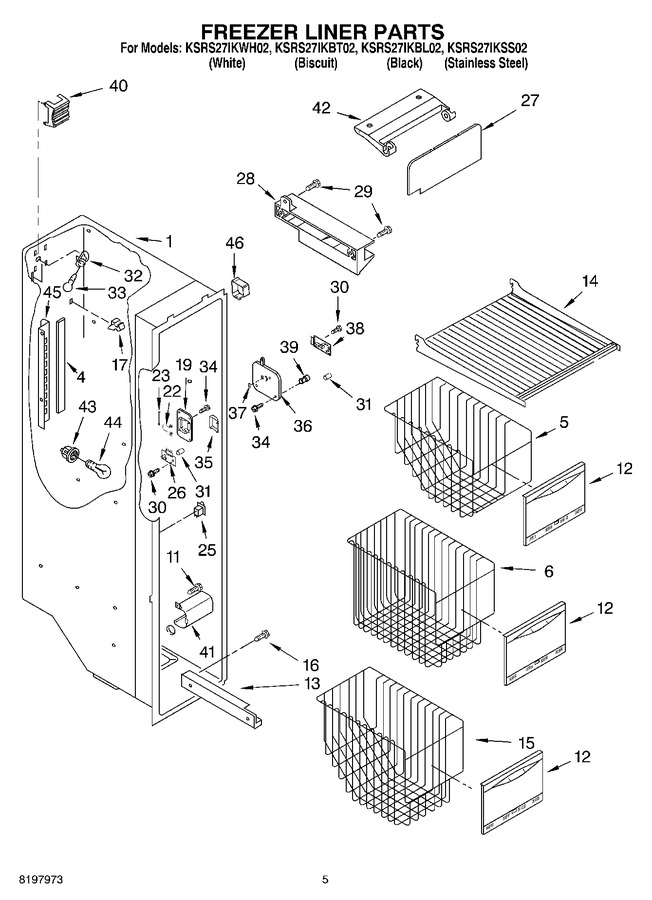

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
4	2198697		Gasket				$ 36.87
5	2205834		Basket, Top		Appelez-nous	-
6	2205833		Basket, Tall		Appelez-nous	-
11	W10142289		Screw   (Replaces: 3400893)				$ 8.24
12	WP2205826K		Basket, Front   (Replaces: 2205826)			Immediately	$ 61.24
13	2181759		Shelf Track (left Side)		Appelez-nous	-
13	2181760		Shelf Track (right Side)		Appelez-nous	-
14	2205837		Shelf		Appelez-nous	-
15	2205832		Basket, Sloped		Appelez-nous	-
16	W10759522		Screw (8)   (Replaces: 486298)				$ 6.98
17	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 9.38
19	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 95.00
22	WP2198635		Spring   (Replaces: 2198635)				$ 78.37
23	WP2198634		Pin   (Replaces: 2198634)				$ 15.98
25	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 34.36
26	W11629974		P.c. Board Emitter   (Replaces: 2198585)			Immediately	$ 360.96
27	WP2255720		Cover, Ice Maker   (Replaces: 2198642)				$ 67.34
28	2212321		Slide, Ice Maker Mounting				$ 67.14
29	WP489478		Screw   (Replaces: 489478)				$ 6.98
30	2006254		Screw   (Replaces: 489214)				$ 11.82
31	2198665		Tube, P.c. Board				$ 21.52
32	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 99.14
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
34	WPW10142283		Screw   (Replaces: 8281185)				$ 8.86
35	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 43.44
36	2198588		Cover, Receiver		Appelez-nous	-
37	2315398		Slide, Ice Maker Shut Off   (Replaces: 2198637)				$ 9.81
38	W11629974		P.c. Board, Receiver   (Replaces: 2198586)			Immediately	$ 360.96
39	WP2198643		Lens   (Replaces: 2198643)				$ 7.36
40	2198589		Light Shield		Appelez-nous	-
41	W11298978		Light Lens   (Replaces: 2212340)				$ 84.49
42	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 6.47
43	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 90.99
44	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
45	2198610		Ladder (right Side)				$ 63.20
45	2198609		Ladder (left Side)				$ 42.40
46	2219878		Shield, Wiring		Appelez-nous	-
