SELECT A DIAGRAM

01 - Cabinet, Literature, Unit


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Section


12 - Ice Maker, Optional

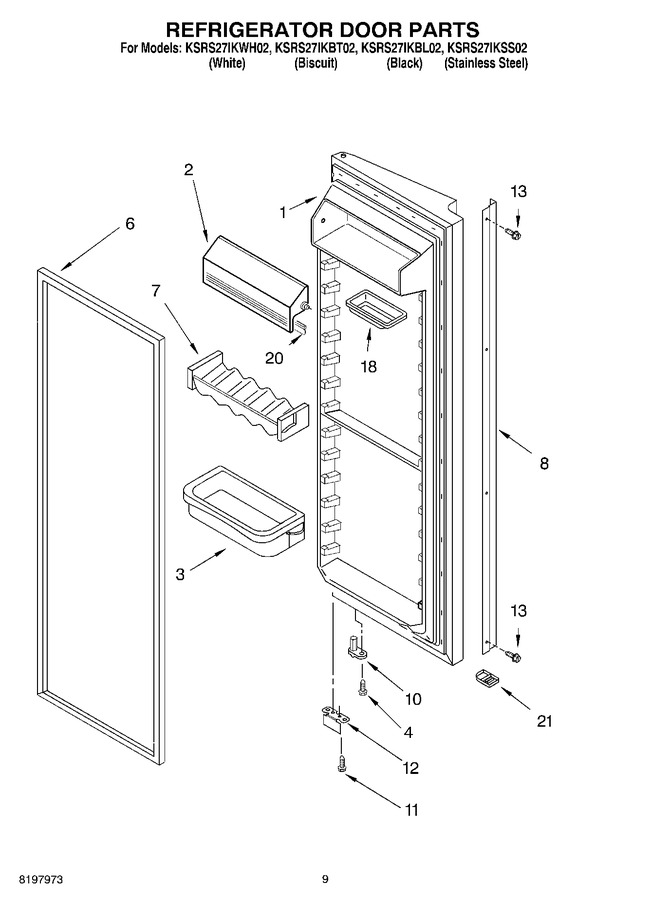

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207184W		Refrigerator Door (includes Item No.6) (white)		Appelez-nous	-
1	2207184T		Refrigerator Door (includes Item No.6) (biscuit)		Appelez-nous	-
1	2207184B		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
1	2207184S		Refrigerator Door (includes Item No.6) (stainless)		Appelez-nous	-
2	2182399		Compartment Door		Appelez-nous	-
3	2205820		Shelf Bin (4)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 226.34
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 285.43
7	2193409		Beverage Holder				$ 48.13
8	2207112S		Handle (stainless)		Appelez-nous	-
8	2207112W		Handle (white)		Appelez-nous	-
8	2207112B		Handle (black)		Appelez-nous	-
8	2207112T		Handle (biscuit)		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
11	WP489483		Screw   (Replaces: 489420)				$ 9.78
12	2206910		Bracket, Door Stop		Appelez-nous	-
13	3400898		Screw (4)		Appelez-nous	-
18	2165792		Butter, Dish		Appelez-nous	-
20	2159124		Gasket		Appelez-nous	-
21	2207111B		Endcap (black)		Appelez-nous	-
21	2207111W		Endcap (white)		Appelez-nous	-
21	2207111T		Endcap (biscuit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
