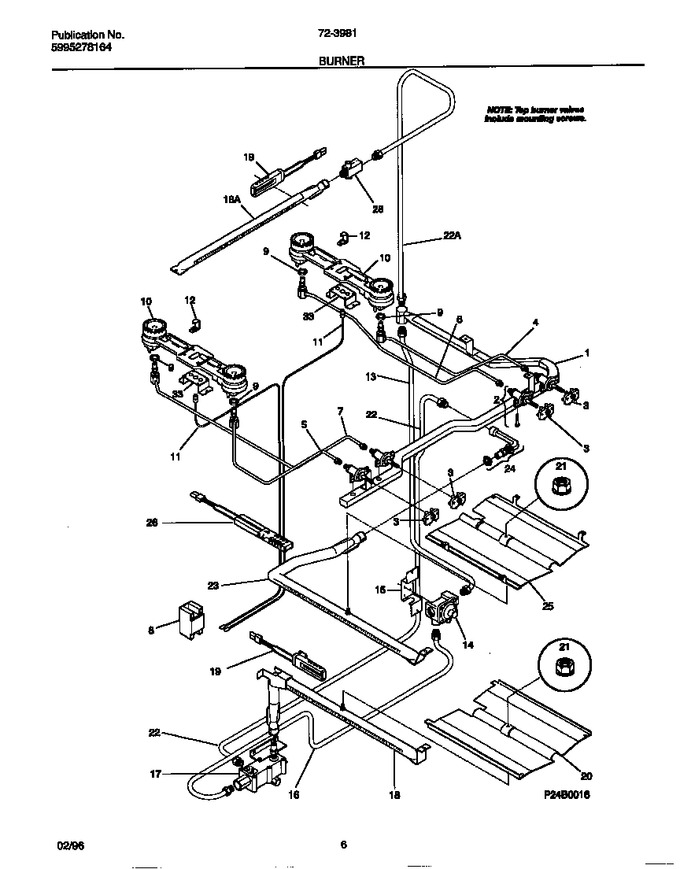

04 - Burner


05 - Lower Body


06 - Upper Body


07 - Top/drawer


08 - Lower Door


09 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316066200		Manifold-pipe		Appelez-nous	-
4	316051400		Tube-burner, Rf		Appelez-nous	-
5	316051401		Tube-burner, Lf				$ 147.84
6	316051402		Tube-burner, Rr		Appelez-nous	-
7	316051403		Tube-burner, Lr				$ 149.19
8	5303200669		Spark Module		Appelez-nous	-
9	3013279		Nut, Special, 4				$ 2.34
10	316057100		Burner-top Double				$ 110.99
12	3016993		Retainer-igniter		Appelez-nous	-
13	316065005		Tube, Aluminum, Rgltr To Manf, With Fittings				$ 91.51
14	5303935125		Regulator-pressure   (Replaces: 316054806)				$ 441.55
15	08067934		Bracket-regulator		Appelez-nous	-
16	316065003		Tube-valve To Rgltr, 3/8				$ 126.42
18	3200502		Burner-oven, Upper		Appelez-nous	-
18	3131290		Burner-oven		Appelez-nous	-
20	3131284		Baffle-oven Burner				$ 155.77
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	316065002		Tube-valve To Mixer				$ 80.90
22	316065000		Tubing-valve		Appelez-nous	-
23	08067935		Burner-broiler				$ 142.59
24	316070400		Mixer Elbow		Appelez-nous	-
25	5303210379		Baffle-broiler				$ 175.88
26	5303935068		Ignitor-broiler   (Replaces: 5308067970)				$ 166.55
28	316070500		Valve-shut Off		Appelez-nous	-
33	3200277		Bracket Burner Mtg		Appelez-nous	-
*95445	3131621		Support, Thrm Valve		Appelez-nous	-
*95446	3131622		Tube-spacer		Appelez-nous	-
*95447	3205396		Retainer-oven Stud		Appelez-nous	-
*95448	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
11A	3200276		Igniter-top Burner, Base, 50``		Appelez-nous	-
11B	5303289336		Igniter-top Burner, Base, 33``		Appelez-nous	-
17A	3131623		Valve-safety		Appelez-nous	-
17B	5303208499		Valve-safety-dual			Immediately	$ 559.67
19A	5303935066		Igniter-oven, Lower   (Replaces: 5303131300)			Immediately	$ 59.58
19B	12400035		Ignitor-oven, Upper   (Replaces: 5303200508)			Immediately	$ 60.44
2A	316020401		Valve-top Burner, 3 Position, (4), W/screw				$ 138.86
2B	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated)		Appelez-nous	-
3A	316032000		Switch-igniter, (4)				$ 58.70
3B	08067947		Harness-wiring, Igniter Sw./mdl (not Illustrated)		Appelez-nous	-
