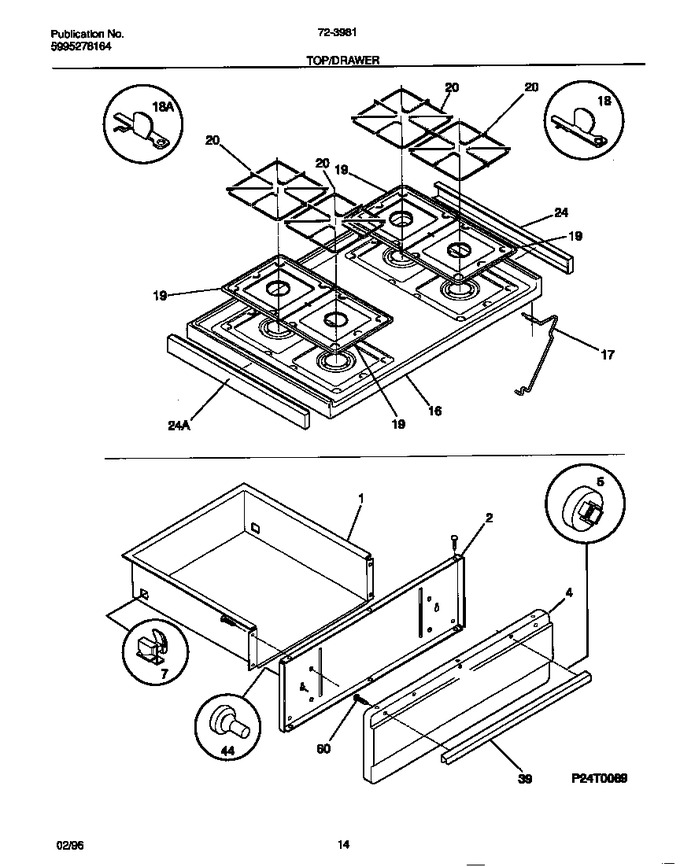

07 - Top/drawer


08 - Lower Door


09 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	3131455		Main Top, Almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19	316021203		Pan Burner (4)		Appelez-nous	-
20	5303272852		Grate, (4)				$ 171.05
24	3051355		Trim, Main Top (rh)		Appelez-nous	-
24	3051354		Trim, Main Top, Lh		Appelez-nous	-
39	5303280334		Handle-drawer/door, Brushed Chrome		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
