SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet/control/shelves


04 - System

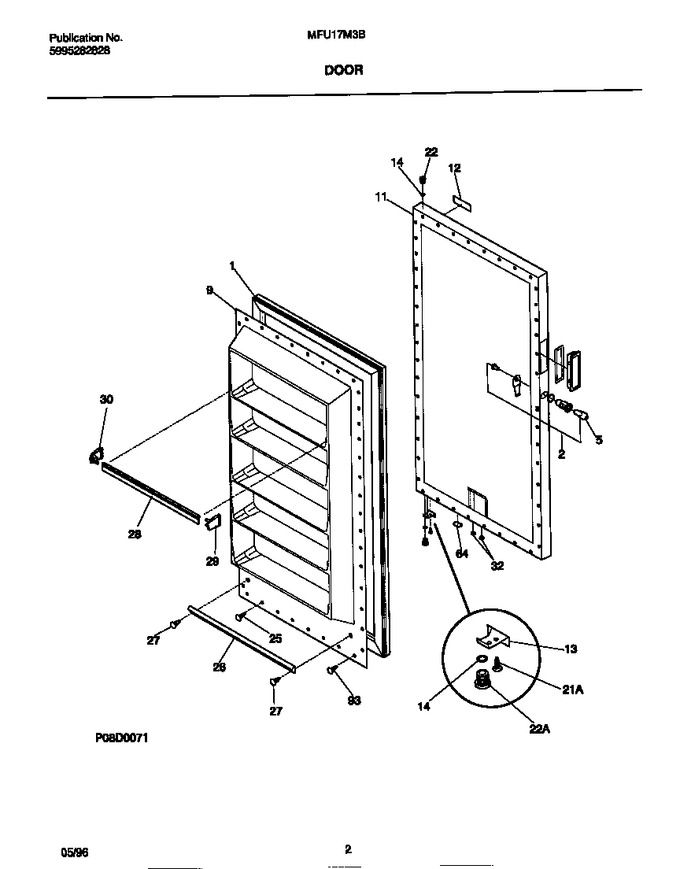

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206256		Gasket, Door, White				$ 248.43
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216063511		Panel-inner Door, White		Appelez-nous	-
11	216413100		Panel-outer Door, W/foam Insul, & Handle, White		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	5303210403		Bearing		Appelez-nous	-
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	06594681		Gasket, Secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	5300129683		Rack-shelf, Narrow		Appelez-nous	-
29	216334000		End Cap-rh-rack-door, Narrow, (4)				$ 47.48
30	216334100		End Cap-lh-rack-door, Narrow, (4)				$ 23.39
32	216390000		Breather-air Duct, Door		Appelez-nous	-
64	216403700		Plug-buttom, Base Door				$ 58.12
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
*48680	5303917276		Insulation				$ 330.91

    View Diagram in Separate Window       Print Part List
