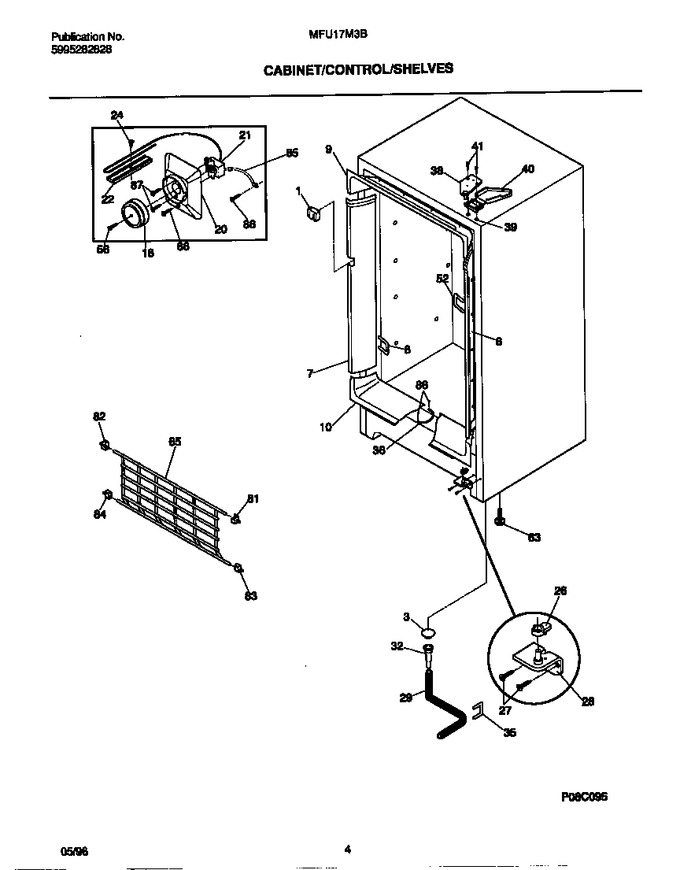

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216013600		Support, Lock		Appelez-nous	-
3	216297600		Plug-drain		Appelez-nous	-
6	216109000		Breaker, Hinge Side		Appelez-nous	-
7	216109101		Breaker-lock Side		Appelez-nous	-
8	216013700		Clip, U, Lock		Appelez-nous	-
9	216085900		Breaker, Top		Appelez-nous	-
10	216085800		Breaker, Bottom		Appelez-nous	-
18	216008602		Knob-temp Control		Appelez-nous	-
20	5303288184		Cover-control Housing		Appelez-nous	-
21	216260400		Control-temperature				$ 178.23
22	08037931		Clamp, Cap Tube, Cold Control		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	5303210424		Ramp, Door		Appelez-nous	-
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Drain Hose				$ 22.42
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
52	08037401		Retainer, Wire, Breaker				$ 2.85
56	09950853		Screw, Knob		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
65	216250300		Drop Front		Appelez-nous	-
81	06599973		Support, Top Rh				$ 6.49
82	06599974		Support, Top Lh		Appelez-nous	-
83	06599975		Support, Bottom Rh				$ 5.99
84	06599976		Support, Bottom Lh		Appelez-nous	-
85	5300125347		Wire-ground, Temp Control		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
*48681	06594680		Clip, Breaker		Appelez-nous	-
*48682	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
