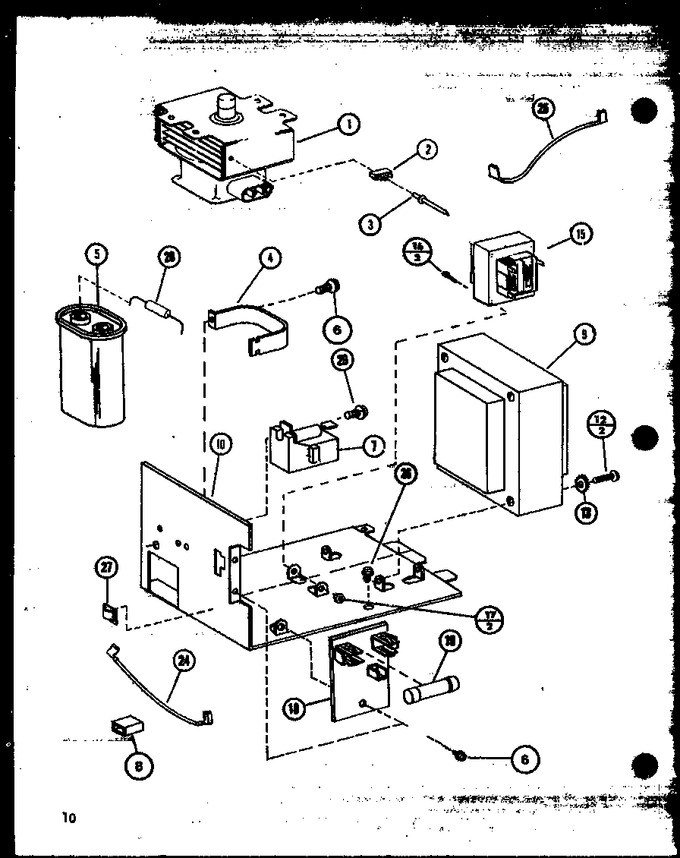

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8761711 | Magnetron |
|
- | |||||
| 2 | B5795304 | Fuse, Thermal |
|
- | |||||
| 3 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 4 | A3257002 | Strap-capacitor |
|
- | |||||
| 5 | 59001651 | Capacitor (Replaces: D8547901) |
|
$ 43.15 | |||||
| 6 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 7 | B8329802 | Kit, Diode |
|
- | |||||
| 9 | D7498502 | Transformer |
|
- | |||||
| 10 | D7442104 | Xfmr Mtg Plate |
|
- | |||||
| 12 | M0254452 | Screw |
|
- | |||||
| 13 | M0272805 | Lock Washer |
|
- | |||||
| 15 | C8807806 | Transformer-filament |
|
- | |||||
| 16 | M0253509 | Screw |
|
- | |||||
| 17 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 18 | C8845901 | Terminal Board K |
|
- | |||||
| 19 | ABC20 | Fuse 20 Amp K (Replaces: M0805101) |
|
Immediately | $ 10.31 | ||||
| 24 | D7384635 | Wire Jumper |
|
- | |||||
| 24 | D7292655 | Jumper Wire |
|
- | |||||
| 24 | D7292676 | Jumper Wire |
|
- | |||||
| 26 | YM0258229 | Sems Fastener |
|
- | |||||
| 29 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 |
