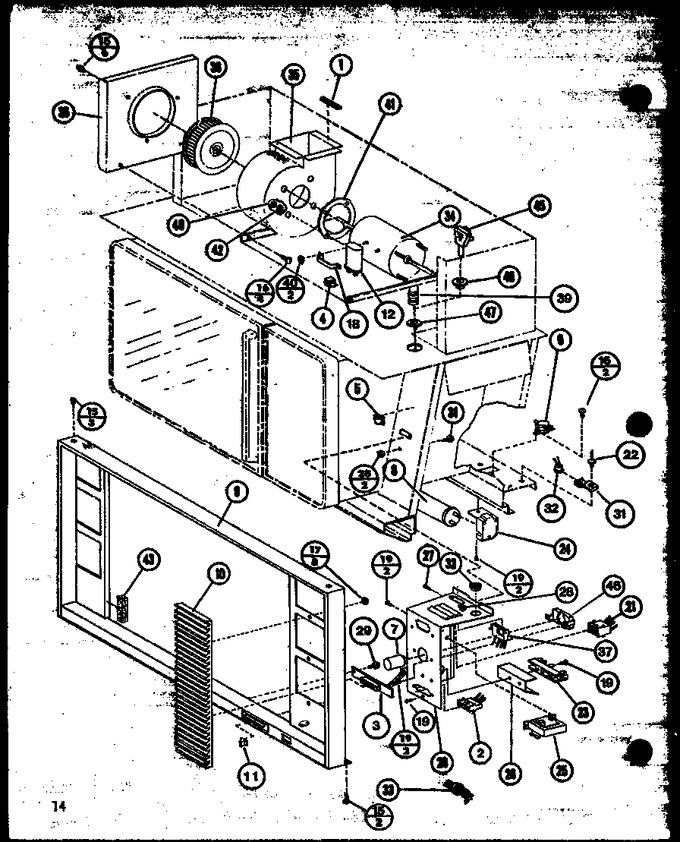

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3030302 | Gasket |
|
- | |||||
| 2 | C8882301 | Wiring Harness |
|
- | |||||
| 3 | C8875503 | P.c. Board |
|
- | |||||
| 4 | M0110508 | Clip |
|
- | |||||
| 5 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 7 | A1028003 | Starter, Flourescent |
|
- | |||||
| 8 | WP95292 | Lamp, Fluorescent (Replaces: M0360302) |
|
Immediately | $ 121.45 | ||||
| 9 | D7586403 | Frame Control |
|
- | |||||
| 10 | D7514701 | Grille |
|
- | |||||
| 11 | B5742502 | Knob Control |
|
- | |||||
| 12 | D6711807 | Capacitor, 7.5 Mfd, 370 V |
|
- | |||||
| 15 | M0210318 | Screw, S.m. |
|
- | |||||
| 15 | M0253217 | Screw |
|
- | |||||
| 16 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 17 | M0288801 | Nut K |
|
- | |||||
| 18 | A4055404 | Strap, Capacitor |
|
- | |||||
| 19 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 20 | D7523108 | Transformer Cover |
|
- | |||||
| 21 | C8882201 | Wiring Harness Contr |
|
- | |||||
| 22 | A4539601 | Pop Rivet |
|
- | |||||
| 23 | B5677210 | Terminal Block |
|
- | |||||
| 24 | D7589901 | Harness, Light |
|
- | |||||
| 25 | B5005902 | Ballast |
|
- | |||||
| 26 | B8334301 | Baffle Term Block |
|
- | |||||
| 28 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 29 | M0229916 | Screw T.c |
|
- | |||||
| 31 | B5725102 | Clip |
|
- | |||||
| 32 | B5665823 | Thermal Cut Out |
|
- | |||||
| 33 | M0571001 | Snap Bushing |
|
- | |||||
| 34 | D7526601 | Motor |
|
- | |||||
| 35 | D7523302 | Scroll Blower |
|
- | |||||
| 35 | D7523301 | Scroll Blower |
|
- | |||||
| 36 | D7589001 | Baffle, Blower |
|
- | |||||
| 36 | D7589002 | Baffle, Blower |
|
- | |||||
| 37 | C8882501 | Wiring Harness |
|
- | |||||
| 38 | D7530701 | Blower Wheel |
|
- | |||||
| 38 | D7530702 | Blower Wheel |
|
- | |||||
| 39 | B8339301 | Conduct Assy |
|
- | |||||
| 40 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 41 | C8881001 | Grommet, Motor |
|
- | |||||
| 42 | M0270508 | Washer |
|
- | |||||
| 43 | A3030341 | Gasket |
|
- | |||||
| 46 | B8351601 | Pad Starter |
|
- | |||||
| 47 | M0342201 | Adapter |
|
- | |||||
| 48 | M0370001 | Strain Relief |
|
- |
