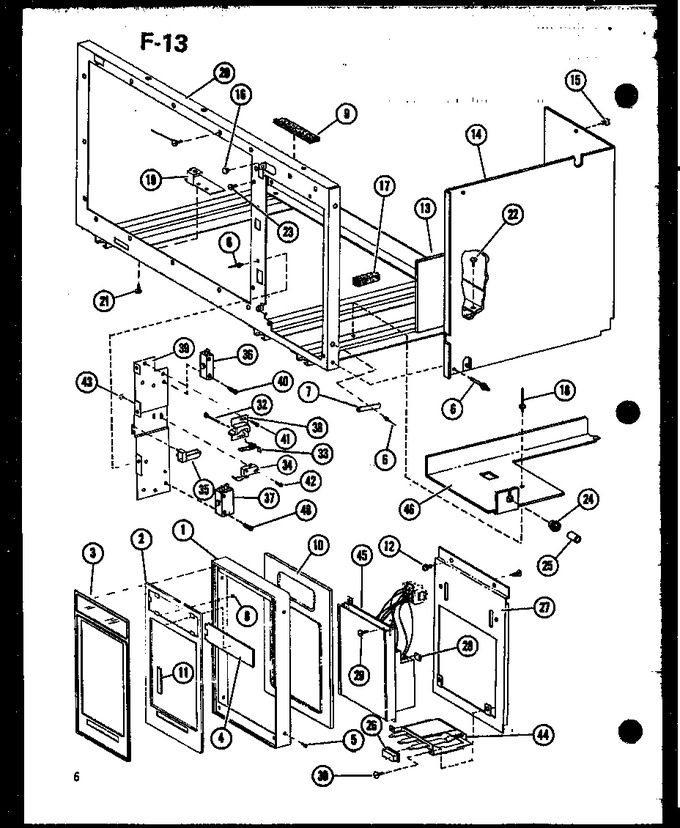

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7455501 | Casting,cont.esc |
|
- | |||||
| 2 | D7457401 | Lens |
|
- | |||||
| 3 | D7457501 | Lens |
|
- | |||||
| 4 | B8318901 | Nameplate |
|
- | |||||
| 5 | WP8281236 | Screw (counter Sunk) (Replaces: M0215704) |
|
$ 6.80 | |||||
| 6 | A4539601 | Pop Rivet |
|
- | |||||
| 7 | B8319701 | Bracket |
|
- | |||||
| 8 | M0288807 | Nut |
|
- | |||||
| 9 | A3030341 | Gasket |
|
- | |||||
| 10 | C8872701 | Escutcheon Lens-k |
|
- | |||||
| 11 | M0275115 | Tape Per Roll |
|
- | |||||
| 12 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 13 | B8339401 | Insulator Board |
|
- | |||||
| 14 | D7515101 | Control Cover |
|
- | |||||
| 15 | M0213815 | Screw |
|
- | |||||
| 16 | A1511502 | Bumper |
|
- | |||||
| 17 | A3030340 | Gasket-per Ft |
|
- | |||||
| 18 | A4539618 | .156 Pop Rivet |
|
- | |||||
| 19 | B8316401 | Bracket |
|
- | |||||
| 20 | D7353119 | Yoke Pntd |
|
- | |||||
| 21 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 22 | M0220114 | Screw |
|
- | |||||
| 23 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 | |||||
| 24 | M0370006 | Strain Relief |
|
- | |||||
| 25 | M0321007 | Sleeve |
|
- | |||||
| 26 | C8743107 | Button (start) K |
|
- | |||||
| 26 | C8743109 | Button (light) |
|
- | |||||
| 26 | C8743108 | Button (stop) K |
|
- | |||||
| 27 | C8890701 | Mtg Plate Timer |
|
- | |||||
| 28 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 29 | M0213815 | Screw |
|
- | |||||
| 30 | M0234003 | Screw |
|
- | |||||
| 32 | A3182601 | Pin Bell-crank |
|
- | |||||
| 33 | B8305701 | Lever |
|
- | |||||
| 34 | B8306602 | Limit Switch |
|
- | |||||
| 35 | C8840402 | Door Guide,sleeve |
|
- | |||||
| 36 | C8842003 | Switch, Limit |
|
- | |||||
| 37 | C8842004 | Switch Limit |
|
- | |||||
| 38 | C8889701 | Door Catch |
|
- | |||||
| 39 | D7545101 | Bracket |
|
- | |||||
| 40 | M0202521 | Screw |
|
- | |||||
| 41 | M0211514 | Screw A K |
|
- | |||||
| 42 | M0229005 | Screw K |
|
- | |||||
| 43 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 44 | C8787803 | Switch Ssl K |
|
- | |||||
| 45 | D7544201 | Net-assy,module |
|
- | |||||
| 45 | D7508114 | Net-assy,module |
|
- | |||||
| 46 | D7534601 | Cover Control |
|
- |
