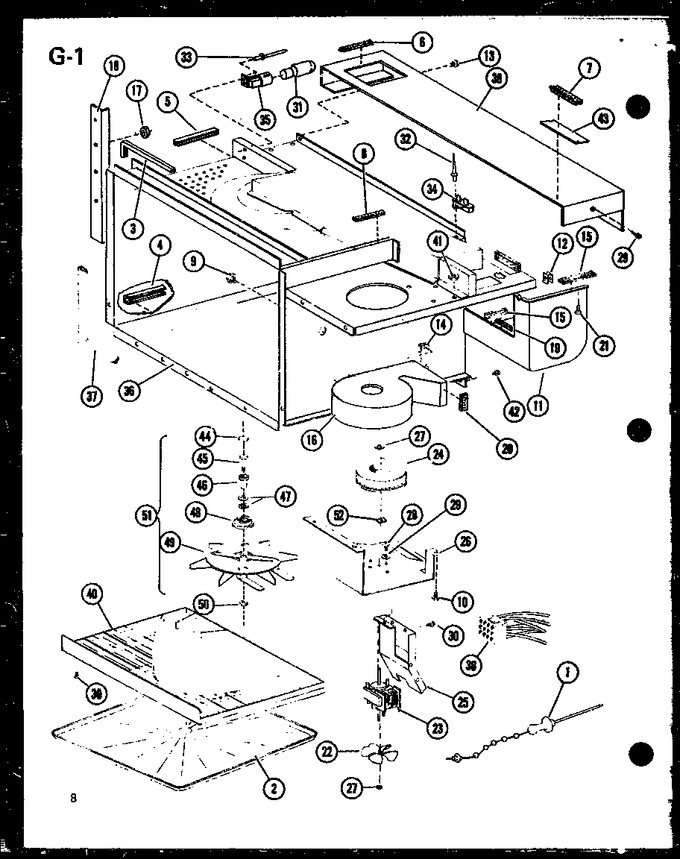

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8821503 | Temp Probe |
|
- | |||||
| 2 | D7089603 | Oven Tray Kit |
|
- | |||||
| 3 | C8887601 | Cover Edge |
|
- | |||||
| 4 | C8887602 | Cover Edge |
|
- | |||||
| 5 | C8887603 | Cover Edge |
|
- | |||||
| 6 | A1032104 | Gasket Per Ft |
|
- | |||||
| 7 | A1032102 | Gasket (ft.) |
|
- | |||||
| 8 | A1032103 | Gasket Per Ft |
|
- | |||||
| 9 | A3275701 | Nut-decorative |
|
- | |||||
| 10 | M0234016 | Screw |
|
- | |||||
| 11 | D7349002 | Magnetron Cover |
|
- | |||||
| 12 | M0288213 | Clip |
|
- | |||||
| 13 | M0213817 | Screw |
|
- | |||||
| 14 | A3030333 | Gasket (1=1ft.) |
|
- | |||||
| 15 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 16 | C8849201 | Blower, Scroll |
|
- | |||||
| 17 | M0282009 | Nut |
|
$ 12.06 | |||||
| 18 | C8853401 | Plate Back Up |
|
- | |||||
| 19 | A3030331 | Gasket-per Ft |
|
- | |||||
| 20 | A3030314 | Gasket-per Ft |
|
- | |||||
| 21 | M0216517 | Screw |
|
- | |||||
| 22 | B5706701 | Fan Blade |
|
- | |||||
| 23 | C8793202 | Motor |
|
- | |||||
| 24 | C8847001 | Blower Wheel |
|
- | |||||
| 25 | C8848601 | Air Chute Assy |
|
- | |||||
| 26 | C8347301 | Bracket, Blower |
|
- | |||||
| 27 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 28 | M0202842 | Screw |
|
- | |||||
| 29 | M0272605 | Washer |
|
- | |||||
| 30 | M0213815 | Screw |
|
- | |||||
| 31 | A3167504 | Bulb Q |
|
- | |||||
| 32 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 33 | A4539601 | Pop Rivet |
|
- | |||||
| 34 | B5795303 | Fuse, Thermal |
|
- | |||||
| 35 | B8338201 | Lampholder Oven |
|
- | |||||
| 36 | D7350509 | Oven Weld |
|
- | |||||
| 37 | D7442201 | Gasket Oven Cavity |
|
- | |||||
| 38 | D7447901 | Wiring Harness |
|
- | |||||
| 39 | D7529502 | Duct Weld-pnt. |
|
- | |||||
| 40 | D7544001 | Grease Shield |
|
- | |||||
| 41 | M0282801 | Lock-nut---k |
|
- | |||||
| 42 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 43 | M0275023 | Tape,alum Per Roll |
|
- | |||||
| 44 | B5792601 | Bearing Cap |
|
- | |||||
| 45 | B5783101 | Stub-antenna A |
|
- | |||||
| 46 | B5783001 | Bearing-antenna A |
|
- | |||||
| 47 | M0274044 | Washer |
|
- | |||||
| 48 | C8838501 | Bushing A |
|
- | |||||
| 49 | R0183053 | Assy, Antenna |
|
- | |||||
| 50 | M0281203 | Nut A |
|
- | |||||
| 51 | C8806701 | Assy, Antenna |
|
- | |||||
| 52 | A1034901 | Washer Retainer |
|
- |
