SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

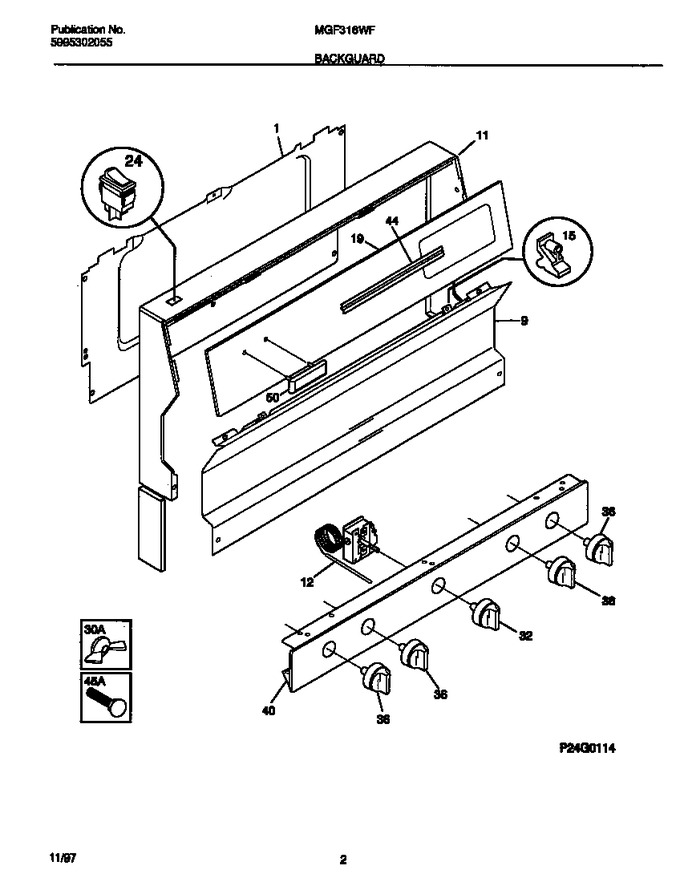

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043611		Trim-splasher, White		Appelez-nous	-
11	316083716		Trim-wrapper,white		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034121		Panel-control,metal ,white		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
30	316064300		Nut,nylon		Appelez-nous	-
32	316102303		Knob-thermostat, White   (Replaces: 316009113)				$ 61.43
36	316009046		Knob,top Valve ,white ,(4)   (Replaces: 316009009)				$ 51.57
40	316086820		Panel-manifold, White		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056903		Bolt-fastener,nylon ,white		Appelez-nous	-
50	316096901		Bezel-nameplate, White				$ 9.82
*18320	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*18321	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
