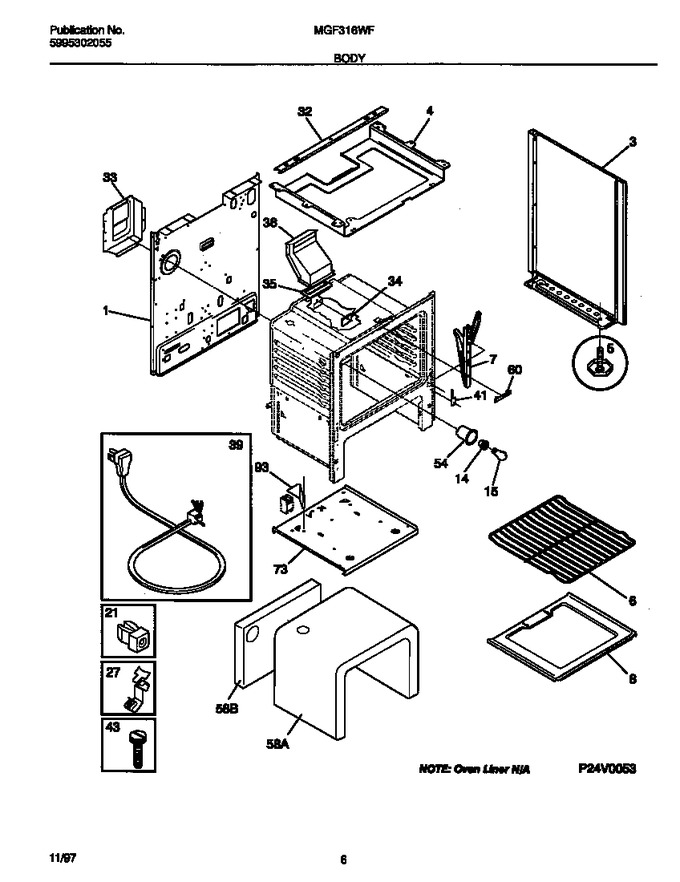

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
3	316081029		Panel-bodyside, White, Lh (not Illustrated)		Appelez-nous	-
3	316081028		Panel-bodyside, White, Rh		Appelez-nous	-
4	316067206		Burner Box		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
21	3014099		Spacer-bodyside, (8)				$ 3.62
27	5303284616		Clip-thermo Bulb				$ 9.86
33	316055601		Shield-spark Module		Appelez-nous	-
34	3018607		Cover Plate				$ 10.50
35	08067965		Gasket-flue		Appelez-nous	-
36	3131909		Flue		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
41	3131570		Cover Hinge Cutout				$ 7.35
43	316282700		Screw-oven Bottom, 8-18 X 1.438   (Replaces: 3131732)				$ 9.93
54	5303271606		Housing,oven Light		Appelez-nous	-
58	3017142		Insulation, Oven Wrapper				$ 193.50
58	3203541		Insulation, Oven Back		Appelez-nous	-
60	5303015372		Cover-oven Front		Appelez-nous	-
73	5303281627		Base-broiler		Appelez-nous	-
93	316055500		Shield, Igntr Connector		Appelez-nous	-
*18322	3131903		Bumper				$ 55.36
*18323	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*18324	316073400		Plate,weight ,(3)		Appelez-nous	-
32A	3203441		Channel-burner Supt		Appelez-nous	-
32B	5303289684		Fastener, Tanden Wire, (2) (not Illustrated)		Appelez-nous	-
5A	5303203397		Screw-leveling				$ 14.49
5B	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
5C	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
5D	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14
7A	316007003		Hinge-oven Door,assembly		Appelez-nous	-
7B	3203010		Clip, Hinge, (4) (not Illustrated)   (Replaces: 5303012323)				$ 14.89
8A	5303212540		Panel-oven Bottom		Appelez-nous	-
8B	316064600		Support, Oven Bottom (not-illustrated)				$ 18.95

    View Diagram in Separate Window       Print Part List
