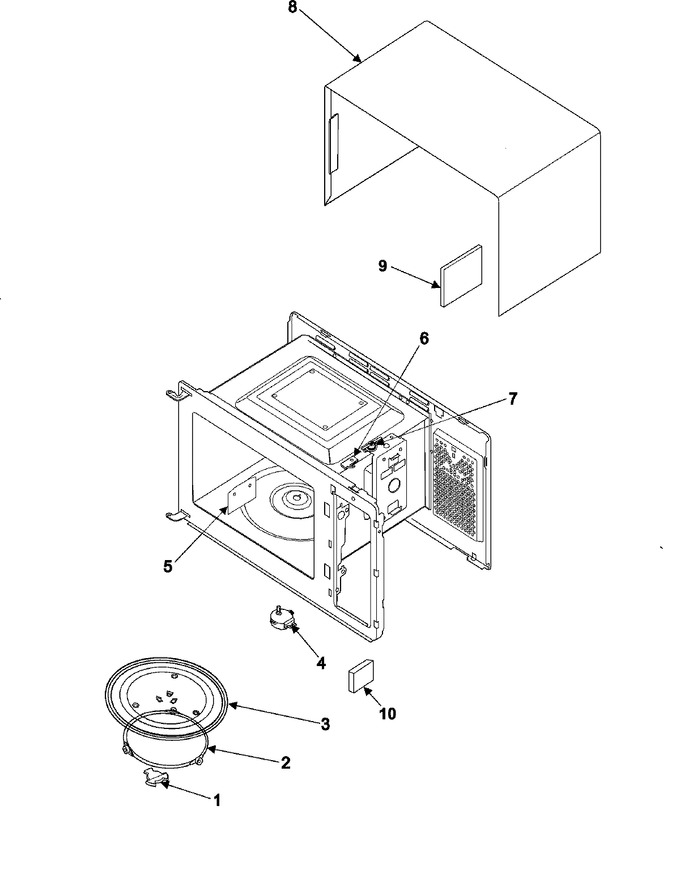

01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Control/latch Assy/base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE67-00140A | Coupler |
|
$ 17.58 | |||||
| 2 | DE97-00193B | Assy-guide Roller |
|
$ 31.95 | |||||
| 3 | DE74-20102D | Tray-cooking |
|
$ 116.52 | |||||
| 4 | 555555 | Motor-drive (Replaces: DE31-10154A) |
|
$ 151.94 | |||||
| 5 | DE71-00151A | Cover, Mgt |
|
- | |||||
| 6 | DE66-00117A | Latch-stopper |
|
- | |||||
| 6 | DE61-00383A | Bracket-stopper |
|
- | |||||
| 7 | DE47-20194C | Thermostat |
|
- | |||||
| 8 | DE70-00184P | Panel-outer |
|
- | |||||
| 9 | DE63-90035G | Cushion-rubber |
|
- | |||||
| 10 | Y00000000 | See Note Cushion-hvt Currently Unavailable |
|
- |
