01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Control/latch Assy/base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:

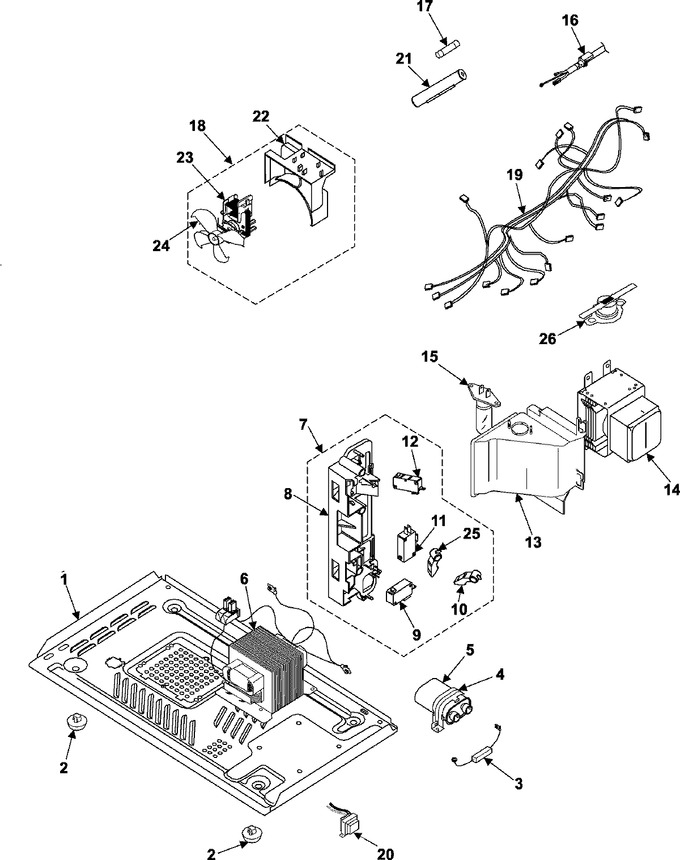

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE80-00024A | Base-plate |
|
- | |||||
| 2 | DE61-40066A | Foot |
|
$ 17.58 | |||||
| 3 | 555555 | Diode-h.v (Replaces: DE59-40001A) |
|
$ 151.94 | |||||
| 4 | DE61-50106A | Bracket, Capacitor |
|
- | |||||
| 5 | 8206562 | Capacitor (Replaces: 2501-001016) |
|
Immediately | $ 108.83 | ||||
| 6 | DE26-00061B | Trans-h.v |
|
$ 181.92 | |||||
| 7 | DE96-00120E | Assy Body Latch |
|
- | |||||
| 8 | DE72-00137A | Body, Latch |
|
- | |||||
| 9 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 10 | DE66-00094A | Lever-switch(b) |
|
$ 21.43 | |||||
| 11 | 3405-001033 | Switch-micro |
|
Immediately | $ 17.58 | ||||
| 12 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 13 | DE71-00164A | Cover-air |
|
- | |||||
| 14 | WPW10126794 | Assy-magnetron:om75p(31)ess (Replaces: YOM75P31ESS) |
|
$ 282.22 | |||||
| 15 | WP8183592 | Lamp-incandescent (Replaces: 4713-001102) |
|
$ 41.09 | |||||
| 16 | DE39-20146E | Assy Power Cord |
|
- | |||||
| 17 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) |
|
Immediately | $ 10.31 | ||||
| 18 | DE96-00100A | Assy-motor Fan |
|
- | |||||
| 19 | DE39-00278A | Wire Harness-a |
|
- | |||||
| 20 | DE26-00037A | Trans-l.v |
|
- | |||||
| 21 | DE47-40025A | Holder, Fuse |
|
- | |||||
| 22 | DE71-00165A | Cover, Motor |
|
- | |||||
| 23 | DE31-10155T | Motor-fan |
|
$ 91.55 | |||||
| 24 | DE31-90057A | Blade-fan |
|
$ 17.58 | |||||
| 25 | DE66-00093A | Lever-switch(a) |
|
$ 16.82 | |||||
| 26 | DE47-20033A | Thermostat |
|
$ 16.82 |
