Diagram for 01 - Body/cavity/elements
01 - Body/cavity/elements

Diagram for 02 - Control Panel/door Assembly
02 - Control Panel/door Assembly

Diagram for 03 - Internal Control/latch Asy/base
03 - Internal Control/latch Asy/base


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DE92-40172A Assy Door Appelez-nous -
2 DE93-30369R Assy Control-box Appelez-nous -
3 DE64-40241A Door-a Appelez-nous -
4 DE67-20157A Screen-door Appelez-nous -
5 DE92-50127G Assy Door-e Appelez-nous -
6 DE64-40012B Door-c Appelez-nous -
7 DE01-00002B Film-door Appelez-nous -
8 DE61-70032A Spring-key Appelez-nous -
9 DE64-40006B Door-key Appelez-nous -
10 YRAUSA2ND02 Assy Pcb Parts Appelez-nous -
11 DE93-30402J Assy Control-panel Appelez-nous -
12 DE61-70076A Spring, Button Special Order $ 20.70

13 555555 Button-push   (Replaces: DE66-20010A) Special Order $ 151.94

14 DE72-70161A Control-panel Special Order $ 24.17

15 DE67-40003A Window-display Appelez-nous -
16 DE34-10217R Switch-membrane Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

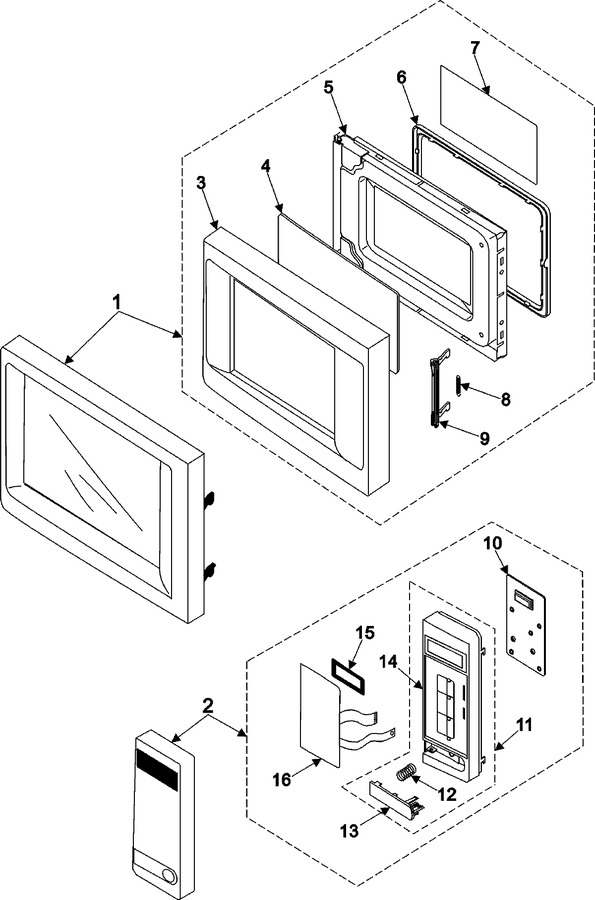

Diagram for MW5380W
