SELECT A DIAGRAM
01 - Body/cavity/elements
02 - Control Panel/door Assembly

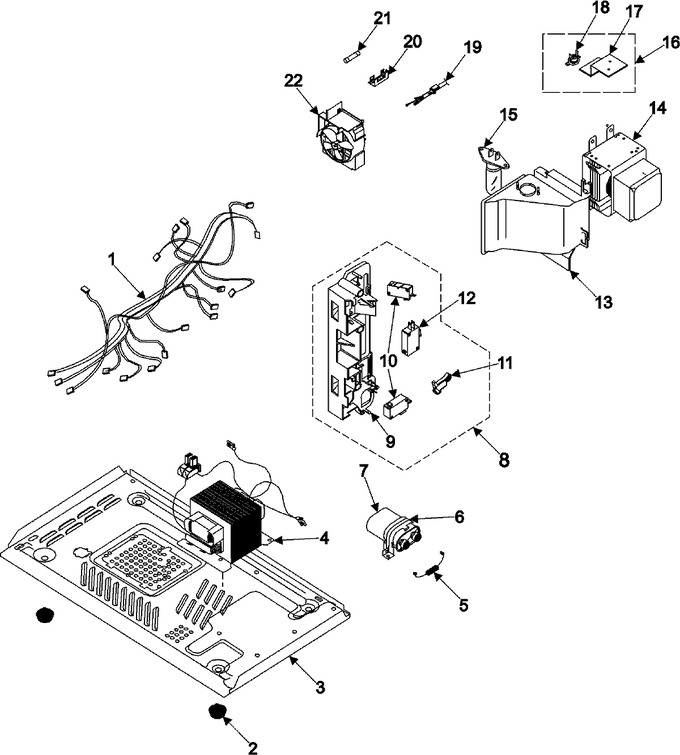

03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE39-40505B | Assy Wire Harness-a |
|
- | |||||
| 2 | DE61-40066A | Foot |
|
$ 17.58 | |||||
| 3 | DE80-10001A | Base-plate |
|
- | |||||
| 4 | DE26-10098C | Trans-h.v |
|
- | |||||
| 5 | 555555 | Diode-h.v (Replaces: DE59-40001A) |
|
$ 151.94 | |||||
| 6 | DE61-50106A | Bracket, Capacitor |
|
- | |||||
| 7 | 2501-001011 | Capacitor |
|
Immediately | $ 74.17 | ||||
| 8 | DE93-20001A | Assy Body Latch |
|
- | |||||
| 9 | DE66-40001A | Latch-body |
|
- | |||||
| 10 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 11 | DE66-90001A | Lever-switch |
|
- | |||||
| 12 | 3405-001032 | Switch-micro |
|
$ 22.17 | |||||
| 13 | DE71-60016A | Cover-air |
|
- | |||||
| 14 | WPW10126794 | Assy-magnetron:om75p(31)ess (Replaces: YOM75P31ESS) |
|
$ 282.22 | |||||
| 15 | 4713-001012 | Lamp-incandescent |
|
$ 40.81 | |||||
| 16 | DE91-70101C | Assy-thermostat |
|
- | |||||
| 17 | DE61-50490A | Bracket-tco |
|
$ 1.66 | |||||
| 18 | DE47-20009A | Thermostat |
|
$ 17.58 | |||||
| 19 | DE39-20049C | Assy Power Cord |
|
- | |||||
| 20 | 3602-001025 | Holder, Fuse |
|
- | |||||
| 21 | 3601-001197 | Fuse-cartridge |
|
$ 18.00 | |||||
| 22 | DE31-10156B | Motor-fan |
|
- |
