Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DE67-00140A Coupler Special Order $ 17.58

2 DE97-00193B Assy-guide Roller Special Order $ 31.95

3 DE74-20102D Tray-cooking Special Order $ 116.52

4 555555 Motor-drive   (Replaces: DE31-10154A) Special Order $ 151.94

5 DE71-00151A Cover, Mgt Appelez-nous -
6 DE66-90113A Lever-door Special Order $ 17.58

7 DE47-20173A Thermostat Special Order $ 21.43

8 DE64-00350Q Panel-outer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

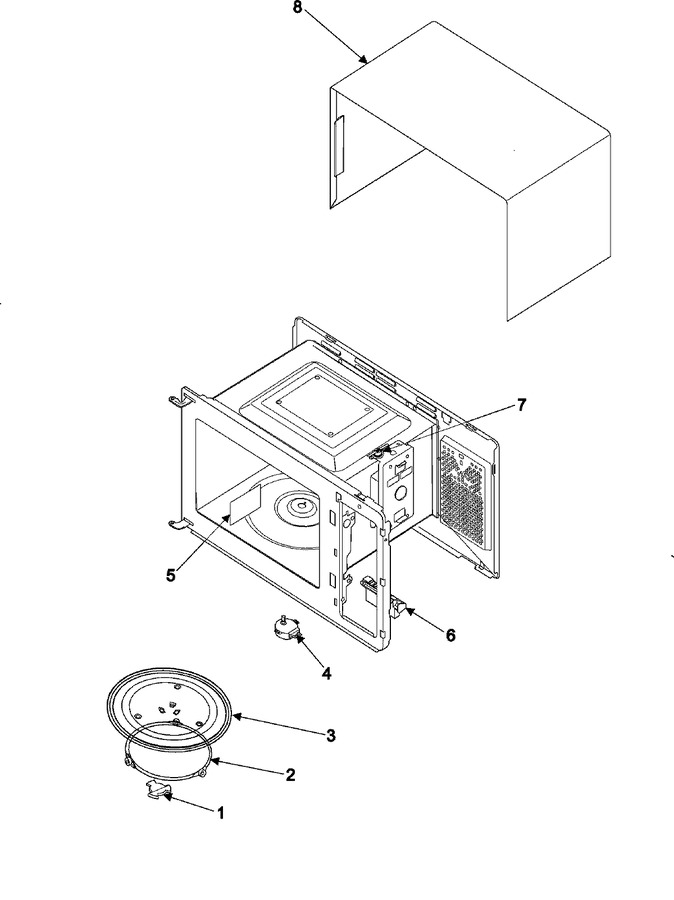

Diagram for MW730BB
