SELECT A DIAGRAM
01 - Body/cavity/elements

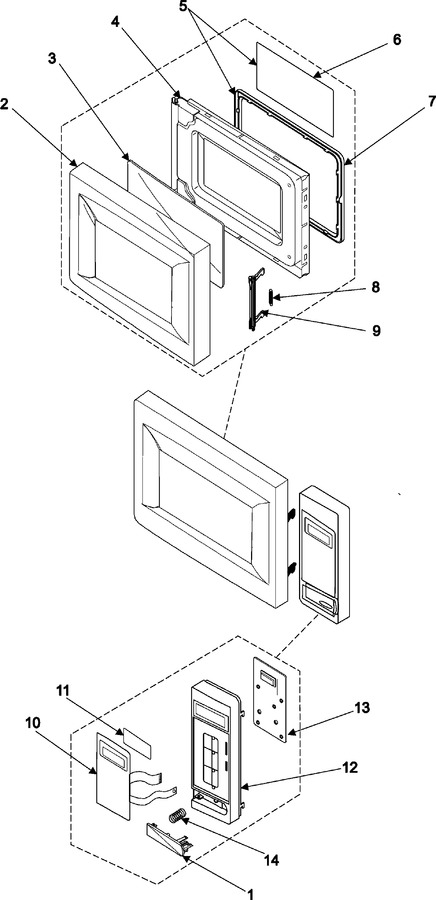

02 - Control Panel/door Assembly
03 - Internal Control/latch Assy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE66-20275K | Button-push |
|
- | |||||
| 2 | DE64-00191B | Door-a |
|
- | |||||
| 3 | DE67-20196A | Screen-door |
|
- | |||||
| 4 | DE94-00351B | Assy Door-e(coating) |
|
- | |||||
| 5 | DE94-00459A | Assy Door-sub |
|
- | |||||
| 6 | DE64-00221B | Film-door |
|
- | |||||
| 7 | DE64-40008B | Door-c |
|
- | |||||
| 8 | DE61-00198A | Spring-key |
|
- | |||||
| 9 | DE64-00210A | Door-key |
|
- | |||||
| 10 | DE34-00132N | Switch Membrane |
|
- | |||||
| 11 | DE67-40179A | Window-display |
|
- | |||||
| 12 | DE72-70201L | Control-panel |
|
- | |||||
| 13 | RA-22LED-24 | Assy Pcb Parts |
|
- | |||||
| 14 | DE61-70076A | Spring, Button |
|
$ 20.70 |
