SELECT A DIAGRAM

01 - Body/cavity/elements

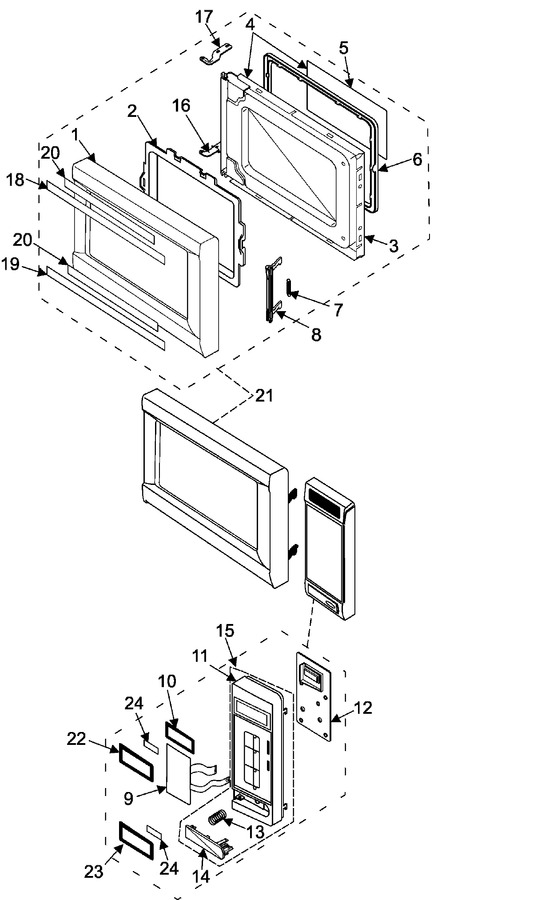

02 - Control Panel/door Assembly


03 - Internal Control/latch Assy/base


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE64-00021B		Door-a		Appelez-nous	-
2	DE67-20188A		Screen-door		Appelez-nous	-
3	DE94-00019K		Assy Door-e		Appelez-nous	-
4	DE94-00198A		Assy Door-sub		Appelez-nous	-
5	DE01-00113A		Film-door		Appelez-nous	-
6	DE64-40010B		Door-c		Appelez-nous	-
7	DE61-70128A		Key, Spring				$ 16.82
8	DE64-40006F		Key, Door				$ 20.70
9	DE34-00021F		Switch Membrane;mw7695gs01,-,9		Appelez-nous	-
10	DE67-40180A		Window-display		Appelez-nous	-
11	DE72-00022B		Control-panel		Appelez-nous	-
12	YRAS22USA00		Assy Pcb Parts:mw5896w-22,120v		Appelez-nous	-
13	DE61-70026A		Spring-button			Immediately	$ 0.85
14	DE66-20286B		Button-push		Appelez-nous	-
15	DE94-00197B		Assy Control-panel;-,mw7695gs,		Appelez-nous	-
16	DE61-80003A		Hinge-lower		Appelez-nous	-
17	DE61-80002A		Hinge-upper		Appelez-nous	-
18	DE80-00002A		Sash-door-u;mw7694w,sts304 ,no.4		Appelez-nous	-
19	DE80-00003A		Sash-door-l;mw7694w,sts304 ,no.4		Appelez-nous	-
20	DE02-00141A		Tape-double Face		Appelez-nous	-
21	DE94-00200B		Assy Door		Appelez-nous	-
22	DE80-30039A		Sash-c/panel(u)		Appelez-nous	-
23	DE80-30040A		Sash-c/panel(l)		Appelez-nous	-
24	DE62-00141A		Tape-double Face		Appelez-nous	-
