01 - Body/cavity/elements
02 - Control Panel/door Assembly

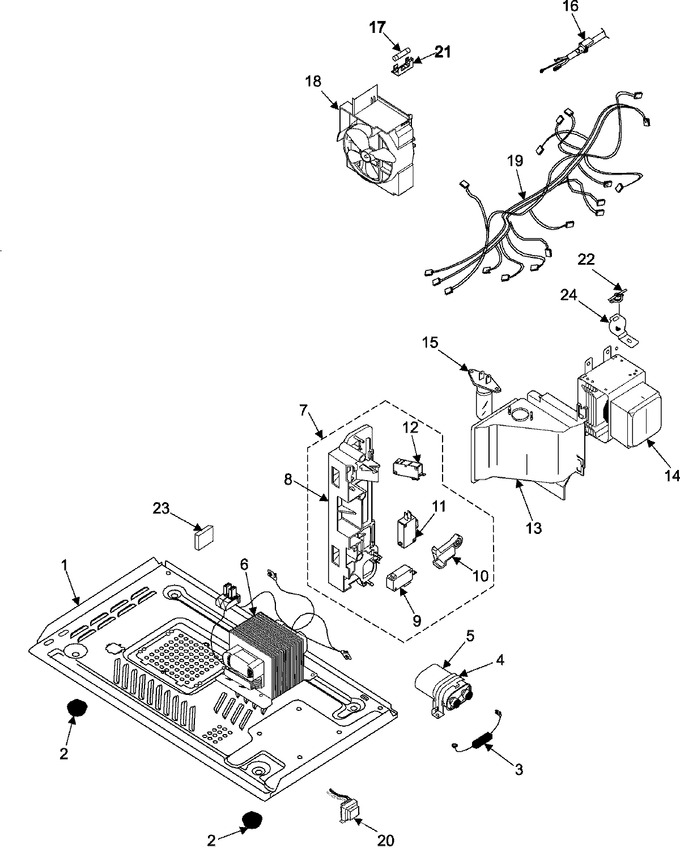

03 - Internal Control/latch Assy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE80-00002A | Sash-door-u;mw7694w,sts304 ,no.4 |
|
- | |||||
| 2 | DE61-40066A | Foot |
|
$ 17.58 | |||||
| 3 | 555555 | Diode-h.v (Replaces: DE59-40001A) |
|
$ 151.94 | |||||
| 4 | DE61-50106A | Bracket, Capacitor |
|
- | |||||
| 5 | 8206562 | Capacitor (Replaces: 2501-001016) |
|
Immediately | $ 108.83 | ||||
| 6 | DE26-00061B | Trans-h.v |
|
$ 181.92 | |||||
| 7 | DE96-00005C | Assy Body Latch |
|
$ 55.05 | |||||
| 8 | DE66-40001C | Latch-body |
|
- | |||||
| 9 | 3405-001042 | Switch-micro |
|
- | |||||
| 10 | DE66-90114A | Lever-s/w |
|
- | |||||
| 11 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 12 | 3405-001032 | Switch-micro |
|
$ 22.17 | |||||
| 13 | DE71-60458A | Cover-air |
|
$ 18.00 | |||||
| 14 | WPW10126794 | Assy-magnetron:om75p(31)ess (Replaces: YOM75P31ESS) |
|
$ 282.22 | |||||
| 15 | 4713-001012 | Lamp-incandescent |
|
$ 40.81 | |||||
| 16 | DE39-20146B | Assy Power Cord |
|
- | |||||
| 17 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) |
|
Immediately | $ 10.31 | ||||
| 18 | 555555 | Assy-motor Fan (Replaces: DE96-00070B) |
|
$ 151.94 | |||||
| 19 | DE39-00205A | Wire Harness-a |
|
- | |||||
| 20 | DE26-00037B | Trans-l.v |
|
- | |||||
| 21 | 3602-001025 | Holder, Fuse |
|
- | |||||
| 22 | DE47-20173A | Thermostat |
|
$ 21.43 | |||||
| 23 | DE63-00005A | Cushion-hvt |
|
- | |||||
| 24 | DE61-50574A | Bracket-tco |
|
- |
