01 - Body/cavity/elements


02 - Control Panel/door Assembly


03 - Internal Control/latch Assy/base


04 - Supplemental Information

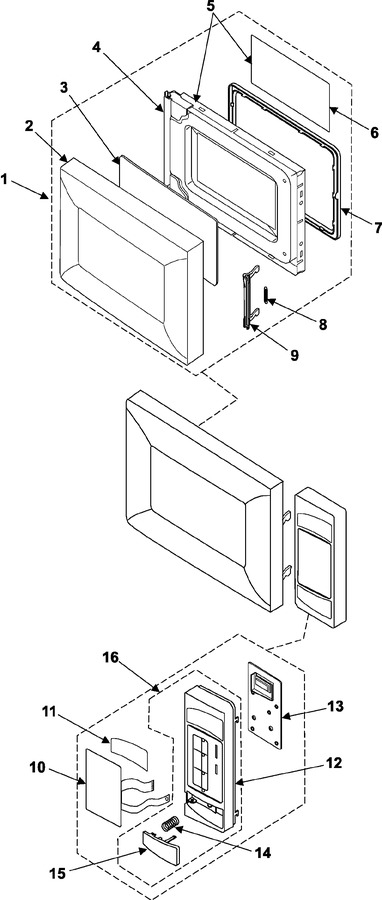

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE94-00687A		Assy Control-panel		Appelez-nous	-
2	DE64-00524A		Door-a		Appelez-nous	-
3	DE67-20196A		Screen-door		Appelez-nous	-
4	DE94-00351B		Assy Door-e(coating)		Appelez-nous	-
5	DE94-00459A		Assy Door-sub		Appelez-nous	-
6	DE64-00221B		Film-door		Appelez-nous	-
7	DE64-40008B		Door-c		Appelez-nous	-
8	DE61-00198A		Spring-key		Appelez-nous	-
9	DE64-00210A		Door-key		Appelez-nous	-
10	DE34-00141E		Switch Membrane		Appelez-nous	-
11	DE64-00533A		Window-display		Appelez-nous	-
12	DE64-00534A		Control-panel		Appelez-nous	-
13	RA-22LED-53		Assy Pcb Parts:mw830wa(otp),12		Appelez-nous	-
14	DE61-70076A		Spring, Button				$ 20.70
15	DE64-00532A		Button-push		Appelez-nous	-
16	DE94-00700A		Assy Door		Appelez-nous	-
