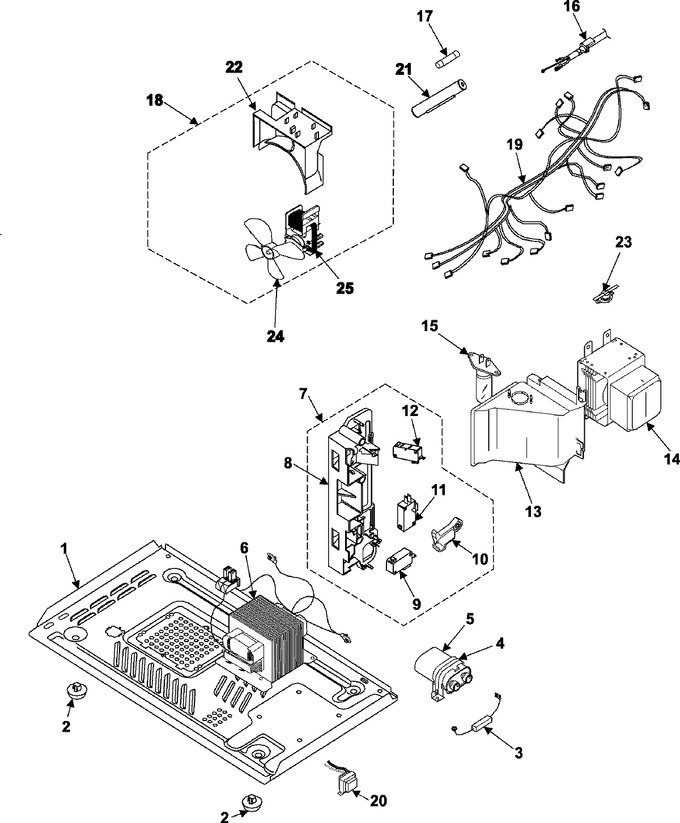

01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Control/latch Assy/base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE80-00023A | Base-plate |
|
- | |||||
| 2 | DE61-40066A | Foot |
|
$ 17.58 | |||||
| 3 | 555555 | Diode-h.v (Replaces: DE59-40001A) |
|
$ 151.94 | |||||
| 4 | Y00000000 | See Note Bracket-hvc Currently Unavailable |
|
- | |||||
| 5 | 2501-001035 | C-oil |
|
Immediately | $ 101.91 | ||||
| 6 | DE26-00060A | Trans-h.v |
|
- | |||||
| 7 | DE96-00115A | Assy Body Latch |
|
- | |||||
| 8 | DE72-00138A | Body-latch |
|
- | |||||
| 9 | 3405-001042 | Switch-micro |
|
- | |||||
| 10 | DE66-00088A | Lever-switch |
|
- | |||||
| 11 | 3405-001033 | Switch-micro |
|
Immediately | $ 17.58 | ||||
| 12 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 13 | DE71-60457B | Cover-air |
|
- | |||||
| 14 | WPW10126794 | Assy-magnetron:om75s(31)ess (Replaces: YOM75S31ESS) |
|
$ 282.22 | |||||
| 15 | WP8183592 | Lamp-incandescent (Replaces: 4713-001102) |
|
$ 41.09 | |||||
| 16 | DE39-20146E | Assy Power Cord |
|
- | |||||
| 17 | 3601-001197 | Fuse-cartridge |
|
$ 18.00 | |||||
| 18 | DE96-00086B | Assy-motor Fan |
|
$ 52.70 | |||||
| 19 | DE39-00269A | Wire Harness-a |
|
- | |||||
| 20 | DE26-00037A | Trans-l.v |
|
- | |||||
| 21 | DE47-40025A | Holder, Fuse |
|
- | |||||
| 22 | DE71-00148A | Cover-blower |
|
- | |||||
| 23 | DE47-20173A | Thermostat |
|
$ 21.43 | |||||
| 24 | DE31-90057A | Blade-fan |
|
$ 17.58 | |||||
| 25 | DE31-10184F | Motor-fan |
|
- |
