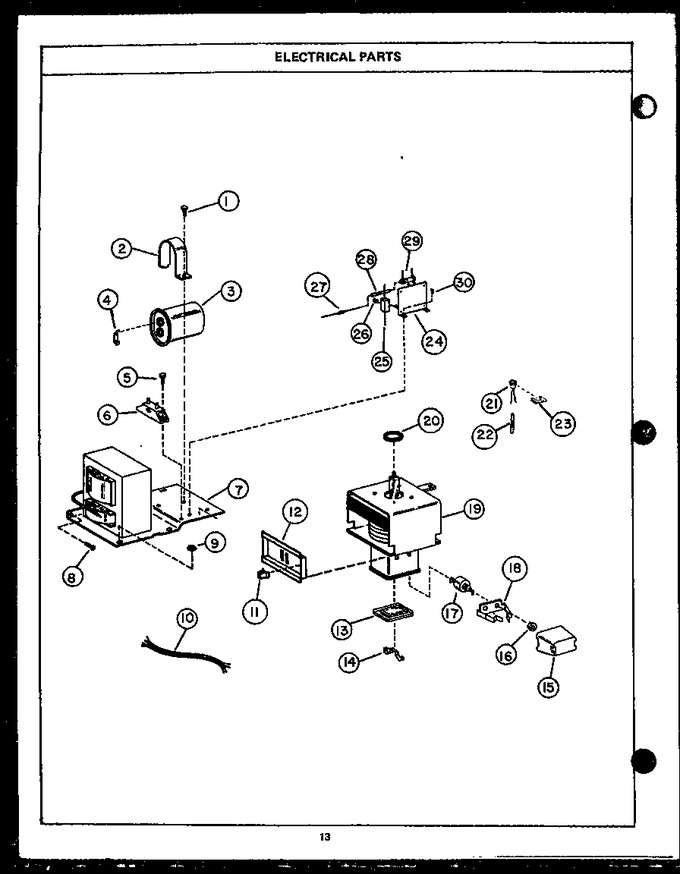

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0090418		Use M0218116		Appelez-nous	-
2	91907		Strap, Capacitor		Appelez-nous	-
3	Y0091908		Sub 89352 Capacitor		Appelez-nous	-
4	0091909		Resistor A		Appelez-nous	-
5	Y0090278		Screw---k		Appelez-nous	-
6	Y0091910		Sub 89945, Diode		Appelez-nous	-
7	0091911		Use D7242101		Appelez-nous	-
8	90471		Screw, Transformer Mounting		Appelez-nous	-
9	M0282005		Sub 97884 Nut   (Replaces: Y0090427)				$ 7.07
10	Y91918		Wiring Harness Main W/o 91919		Appelez-nous	-
10	91919		Wiring Harness, Lower Interloc		Appelez-nous	-
11	Y0091916		Clip K		Appelez-nous	-
12	0091915		Use B5679101		Appelez-nous	-
13	90294		Cover, Capacitor Box		Appelez-nous	-
14	0090292		Use A3145401		Appelez-nous	-
15	Y0090428		Shield Hv K		Appelez-nous	-
16	0091917		Hex Nut		Appelez-nous	-
17	0090458		Capacitor K		Appelez-nous	-
18	0090460		Clip K		Appelez-nous	-
19	0091914		Sub 88404 Magnetron Tube		Appelez-nous	-
20	0091913		Gasket, Magnetron		Appelez-nous	-
21	0090456		Thermal Prot		Appelez-nous	-
22	WP75614		Connector A-k   (Replaces: Y0091925)				$ 44.41
23	90457		Clip, Thermal Protector		Appelez-nous	-
24	0091924		Terminal Board		Appelez-nous	-
25	0091923		Resistor		Appelez-nous	-
26	Y0091912		Insulator, Pad K		Appelez-nous	-
26	Y0090422		Insulator, Term. K		Appelez-nous	-
27	Y0091921		M0308110		Appelez-nous	-
28	0091922		Sleeve		Appelez-nous	-
29	Y0091920		Resistor A		Appelez-nous	-
NI	0091928		Jumper Wire K		Appelez-nous	-
NI	Y0091926		Jumper Wire		Appelez-nous	-
NI	Y0091929		Jumper Wire		Appelez-nous	-
NI	Y0091927		Jumper Wire		Appelez-nous	-
