01 - Control Panel Parts


02 - Door Parts


03 - Electrical Parts


04 - Interior Parts

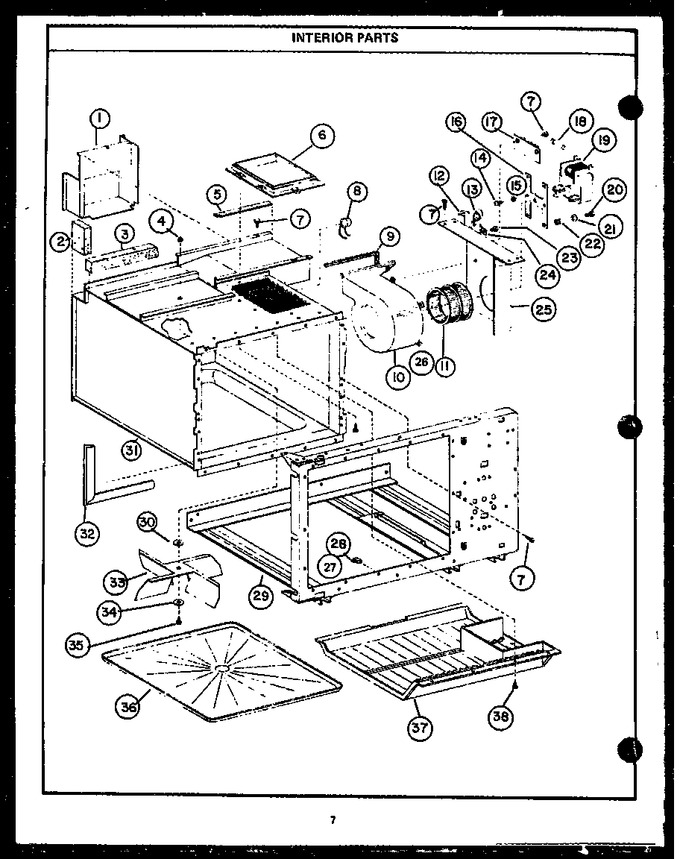

05 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y91843		Duct		Appelez-nous	-
2	0091852		Use B5695301		Appelez-nous	-
3	0091853		Use B5695302		Appelez-nous	-
4	M0282005		Nut K   (Replaces: Y0090432)				$ 7.07
5	Y0091854		Gasket,per Ft		Appelez-nous	-
6	0091841		Air Duct		Appelez-nous	-
7	Y0090431		Screw A-k		Appelez-nous	-
8	0090456		Thermal Prot		Appelez-nous	-
9	91855		Gasket, Sponge		Appelez-nous	-
10	Y0091857		Scroll		Appelez-nous	-
11	0091859		Blower Wheel		Appelez-nous	-
12	91861		Brace, Scroll		Appelez-nous	-
13	Y0091845		Clamp		Appelez-nous	-
14	90463		Screw		Appelez-nous	-
15	Y90464		Washer, Lock		Appelez-nous	-
16	91865		Support, Blower Mounting		Appelez-nous	-
17	0091862		Use B5735601		Appelez-nous	-
18	0091863		Fuse-20a		Appelez-nous	-
19	0091864		Use B5736102		Appelez-nous	-
20	Y0091868		Screw		Appelez-nous	-
21	0091867		Use A0381401		Appelez-nous	-
22	Y0091866		Clip, Waterline		Appelez-nous	-
23	0090418		Use M0218116		Appelez-nous	-
24	90390		Terminal, Ground		Appelez-nous	-
25	Y0091860		End Plate Wld		Appelez-nous	-
26	WPM0104106		Clip, Cord   (Replaces: Y0090281)				$ 7.00
27	Y0091858		Pop Rivet K		Appelez-nous	-
28	90389		Handle Only		Appelez-nous	-
29	91842		Yoke, Weldment		Appelez-nous	-
30	Y0091869		Bushing-stirrer Mt		Appelez-nous	-
31	91846		Weldment, Oven		Appelez-nous	-
32	0091847		Gasket Oven Cavity		Appelez-nous	-
33	0091850		Use C8720801		Appelez-nous	-
34	0091849		Bearing		Appelez-nous	-
35	0091844		Shoulder Screw		Appelez-nous	-
36	69199		Glass Tray, Upper Oven		Appelez-nous	-
37	Y0091848		Sub 89823 Grease Shield		Appelez-nous	-
38	Y0090431		Screw A-k		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
