02 - Backguard


03 - Burner


04 - Body


05 - Body


06 - Top/drawer


07 - Door

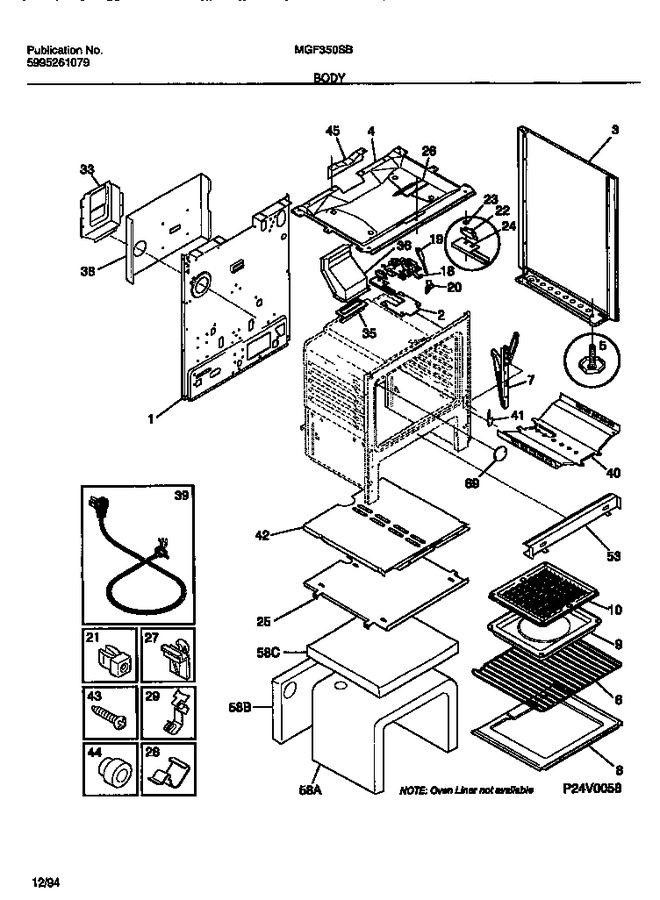

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029410		Back-main		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	5303269518		Panel-bodyside, White, Rh		Appelez-nous	-
3	08067992		Shield, Insulation, Galv Steel (not Illustrated)		Appelez-nous	-
3	3200834		Shield, Heat, Body Side (not Illustrated)		Appelez-nous	-
3	5303269519		Panel, Bodyside, White, Lh (not-illustrated)		Appelez-nous	-
4	3011597		Burner Box		Appelez-nous	-
5	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
5	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14
5	5303203397		Screw, Levelling				$ 14.49
5	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
6	5303281625		Rack Oven		Appelez-nous	-
7	316007001		Hinge,oven Door ,(2)				$ 234.55
8	5303212540		Panel-oven Bottom		Appelez-nous	-
8	316064600		Support, Oven Bottom (not-illustrated)				$ 18.95
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
18	3131593		Shield, Latch Top (not Illustrated)		Appelez-nous	-
18	5303015453		Latch-door				$ 172.04
19	5303131357		Handle-latch				$ 37.33
20	3203218		Knob-latch		Appelez-nous	-
20	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
22	5303269499		Switch-latch				$ 20.53
22	08067978		Stud, Spacer (not Illustrated)		Appelez-nous	-
23	08067776		Fastener-push-on		Appelez-nous	-
24	3051413		Shield-latch		Appelez-nous	-
25	3131313		Shield-heat-lower		Appelez-nous	-
26	08067757		Cover Plate		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3011813		Clip-wire				$ 14.79
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
33	316014401		Shield, Rear Wall		Appelez-nous	-
35	08067965		Gasket-flue		Appelez-nous	-
36	3131931		Flue		Appelez-nous	-
38	316014301		Shield-heat		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
40	5303288570		Scrw, Heat Shld, Hd Shldr Sqdr, 8, 18 X 1/2 (not Illustr		Appelez-nous	-
40	3200836		Shield-heat Baffle		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
42	5303270104		Shield-bake-burner		Appelez-nous	-
43	316282700		Screw-oven Bottom, 8-18 X 1-7/16   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
45	08068018		Shield-wire		Appelez-nous	-
53	08067973		Insulation, Main Front (not Illustrated)				$ 51.74
53	5303271047		Shield-main Front		Appelez-nous	-
*60646	316001628		Harness, Wiring, Main (ni)		Appelez-nous	-
*60652	5303321319		Touch-up Paint, White (not Illustrated)   (Replaces: 5303305324)			Immediately	$ 13.46
*60654	08067961		Fastener-power Cord		Appelez-nous	-
*60655	3200846		Fastener-edge Mtg		Appelez-nous	-
