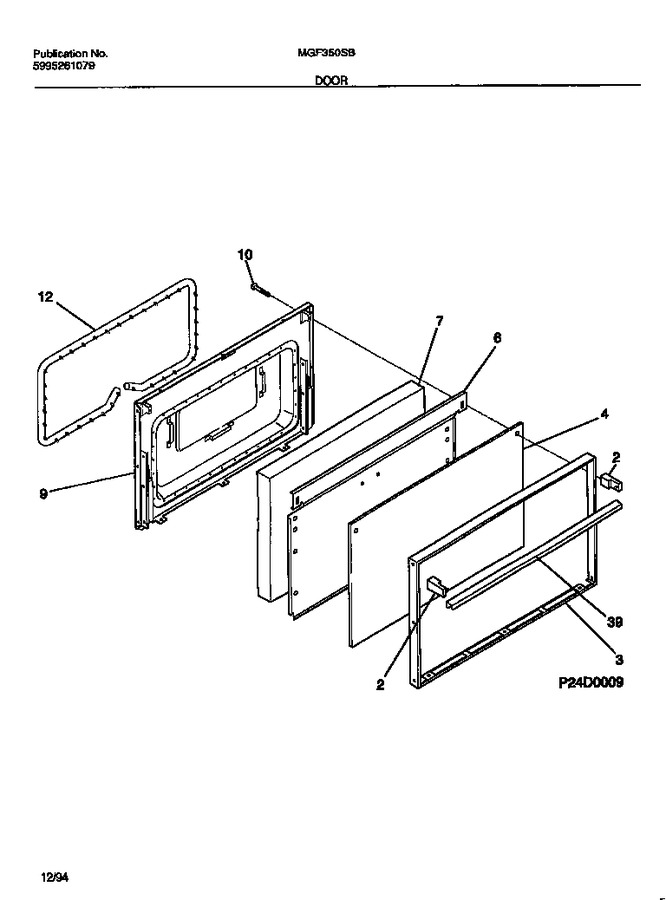

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3016755 | End Cap, Black, (2) |
|
- | |||||
| 3 | 316067802 | Trim,oven Door ,black |
|
- | |||||
| 4 | 5303051153 | Glass-oven Door, Solid Black, Outer |
|
- | |||||
| 6 | 5303209317 | Shield-insulation, Black |
|
- | |||||
| 7 | 5303209514 | Insulation-oven Door |
|
- | |||||
| 9 | 316066602 | Liner-oven Door |
|
- | |||||
| 10 | 5303281378 | Screw-handle Mtg, Wafer Head, 10-24(f) X 3 |
|
$ 13.60 | |||||
| 12 | 5303131601 | Seal-oven Door |
|
$ 374.63 | |||||
| 39 | 5303273127 | Handle-door, Black, Oven |
|
- | |||||
| *60648 | 316065300 | Plate Warning/caution |
|
- | |||||
| *60649 | 3203618 | Rivet-pop, Waring-plate |
|
- | |||||
| *60650 | 5303212671 | Screw, Cr Pan Hd Sems, 8, 32(bp) X 1 |
|
- | |||||
| *60651 | 5303269859 | Screw 8-18 X 1/2 Black |
|
- |
