02 - Cabinet Parts
03 - Electric Parts
04 - Air Handling Parts
05 - Compressor
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

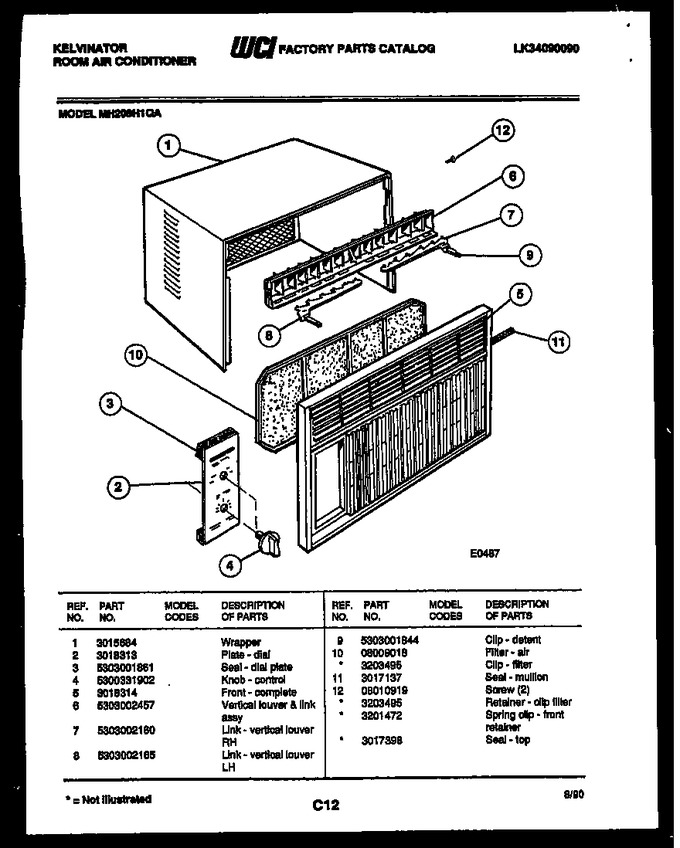

| 1 | 3015684 | Wrapper |
|
- | |||||
| 2 | 3018313 | Plate-dial |
|
- | |||||
| 3 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 4 | 5300331902 | Knob Control |
|
- | |||||
| 5 | 3018314 | Front-complete |
|
- | |||||
| 6 | 5303002457 | Vertical Louver & Link Assy |
|
- | |||||
| 7 | 5303002160 | Link-vertical Louver Rh |
|
- | |||||
| 8 | 5303002165 | Link Vertical Louver Lh |
|
- | |||||
| 9 | 5303001844 | Clip-detent |
|
- | |||||
| 10 | 08009018 | Filter-air |
|
- | |||||
| 11 | 3017137 | Seal-mullion |
|
- | |||||
| 12 | 08010919 | Screw (2) |
|
- | |||||
| *17846 | 3201472 | Spring Clip-front Retainer |
|
- | |||||
| *17846 | 3203495 | Retainer - Clip Filter |
|
- | |||||
| *17846 | 3017398 | Seal-top |
|
- | |||||
| 10A | 3203495 | Clip-filter (non-illustrated) |
|
- |
