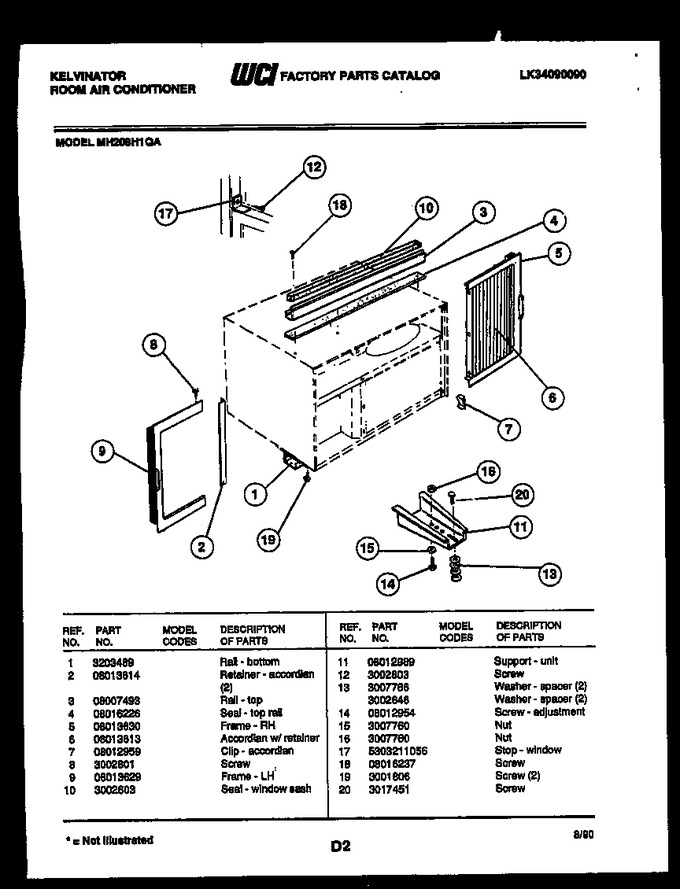

02 - Cabinet Parts
03 - Electric Parts
04 - Air Handling Parts
05 - Compressor
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203489 | Rail-bottom |
|
- | |||||
| 2 | 08013614 | Retainer-accordian (2) |
|
- | |||||
| 3 | 08007493 | Rail-top |
|
- | |||||
| 4 | 08016226 | Seal, Top Rail |
|
- | |||||
| 5 | 08013630 | Frame-rh |
|
- | |||||
| 6 | 08013613 | Accordian W/ Retainer |
|
- | |||||
| 7 | 08012959 | Clip - Accordian |
|
- | |||||
| 8 | 3002801 | Screw |
|
- | |||||
| 9 | 08013629 | Frame-lh |
|
- | |||||
| 10 | 3002603 | Seal Window Sash |
|
- | |||||
| 11 | 08012989 | Support-unit |
|
- | |||||
| 12 | 3002803 | Screw |
|
- | |||||
| 13 | 3002646 | Washer-spacer (2) |
|
- | |||||
| 13 | 3007766 | Washer-spacer (2) |
|
- | |||||
| 14 | 08012954 | Screw Adjustment |
|
- | |||||
| 15 | 3007760 | Nut |
|
- | |||||
| 16 | 3007760 | Nut |
|
- | |||||
| 17 | 5303211056 | Stop-window |
|
- | |||||
| 18 | 08016237 | Screw |
|
- | |||||
| 19 | 3001806 | Screw (2) |
|
- | |||||
| 20 | 3017451 | Screw |
|
- |
