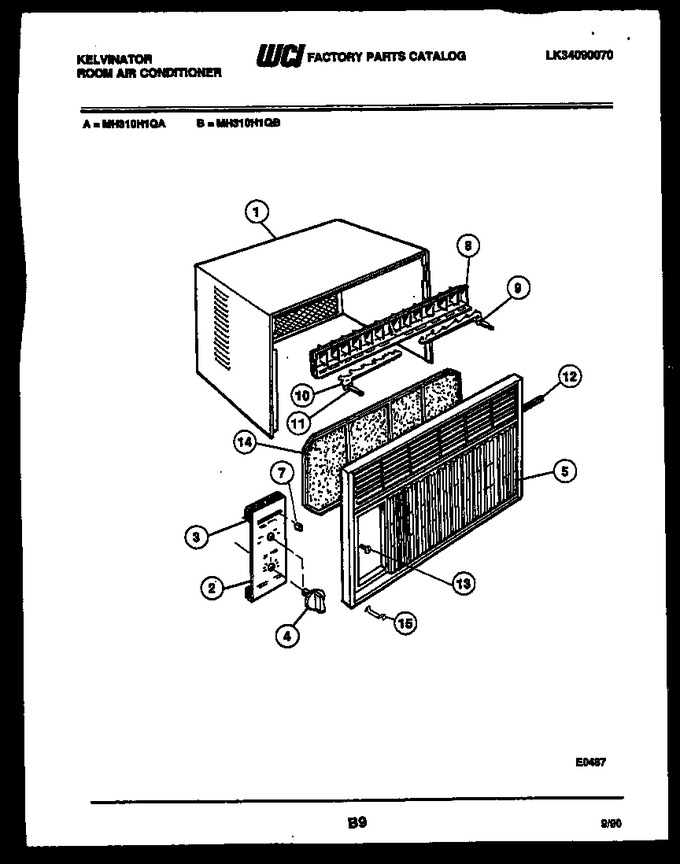

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207184 | Wrapper |
|
- | |||||
| 2 | 5303018760 | Dial Plate |
|
- | |||||
| 3 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 4 | 5300331902 | Knob |
|
- | |||||
| 5 | 3203264 | Front-complete |
|
- | |||||
| 7 | 5303002189 | Knob-slide |
|
- | |||||
| 8 | 5303002458 | Vert. Louver & Link Assy. |
|
- | |||||
| 9 | 5303002164 | Link - Vert Louver Rh |
|
- | |||||
| 10 | 5303002165 | Link - Vert Louver Lh |
|
- | |||||
| 11 | 5303001844 | Clip-link Detent |
|
- | |||||
| 12 | 3018413 | Seal-mullion |
|
- | |||||
| 13 | 3017304 | Screw-front Locking |
|
- | |||||
| 14 | 5303001809 | Filter-air |
|
- | |||||
| 15 | 3200446 | Clip-front Retaining |
|
- | |||||
| *17693 | 3018407 | Seal-top |
|
- | |||||
| *17693 | 5303001775 | Spacer-dial Plate (2) |
|
- |
