New Model Search:

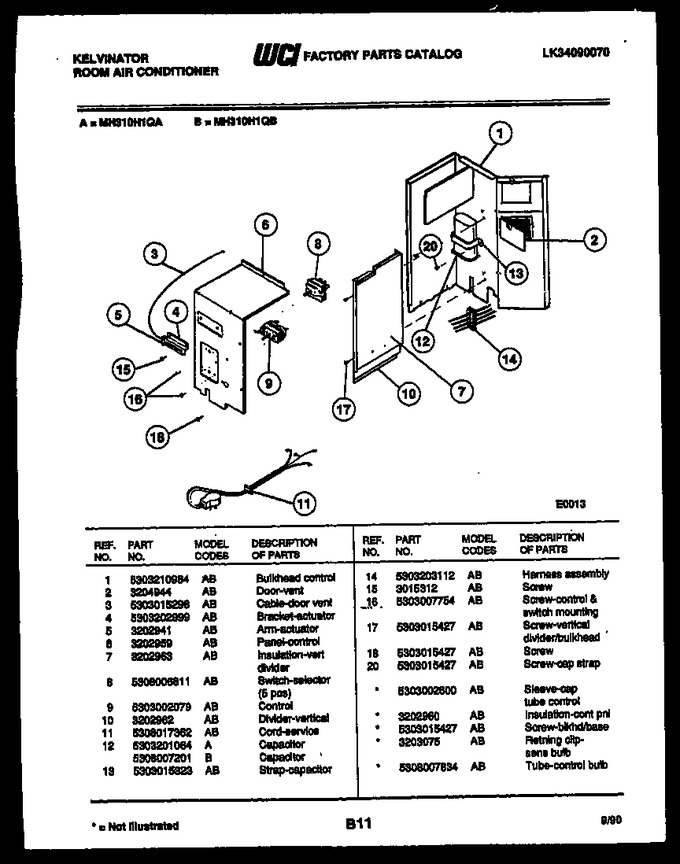

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210984 | Bulkhead - Control |
|
- | |||||
| 2 | 3204944 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable-door Vent |
|
- | |||||
| 4 | 5303202999 | Bracket-actuator |
|
- | |||||
| 5 | 3202941 | Arm-actuator |
|
- | |||||
| 6 | 3202959 | Panel-control |
|
- | |||||
| 7 | 3202963 | Insulation-vert Divider |
|
- | |||||
| 8 | 5308006811 | Switch-selector (5 Pos) |
|
$ 33.65 | |||||
| 9 | 5303002079 | Control |
|
- | |||||
| 10 | 3202962 | Divider-vertical |
|
- | |||||
| 11 | 5308017362 | Cord-service |
|
- | |||||
| 12 | 5308007201 | Capacitor |
|
- | |||||
| 13 | 5303015323 | Strap-capacitor |
|
- | |||||
| 14 | 5303203112 | Harness Assembly |
|
- | |||||
| 15 | 3015312 | Screw |
|
- | |||||
| 16 | 5303007754 | Screw-control & Switch Mounting |
|
- | |||||
| 17 | 5303015427 | Screw-vertical Divider/bulkhead |
|
- | |||||
| 18 | 5303015427 | Screw |
|
- | |||||
| 20 | 5303015427 | Screw-cap Strap |
|
- | |||||
| *17695 | 5303015427 | Screw-blkhd/base |
|
- | |||||
| *17695 | 5303002600 | Sleeve-cap Tube Control |
|
- | |||||
| *17695 | 3203075 | Retning Clip-sens Bulb |
|
- | |||||
| *17695 | 3202960 | Insulation-cont Pnl |
|
- | |||||
| *17695 | 5308007834 | Tube Control Bulb |
|
- |
