View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

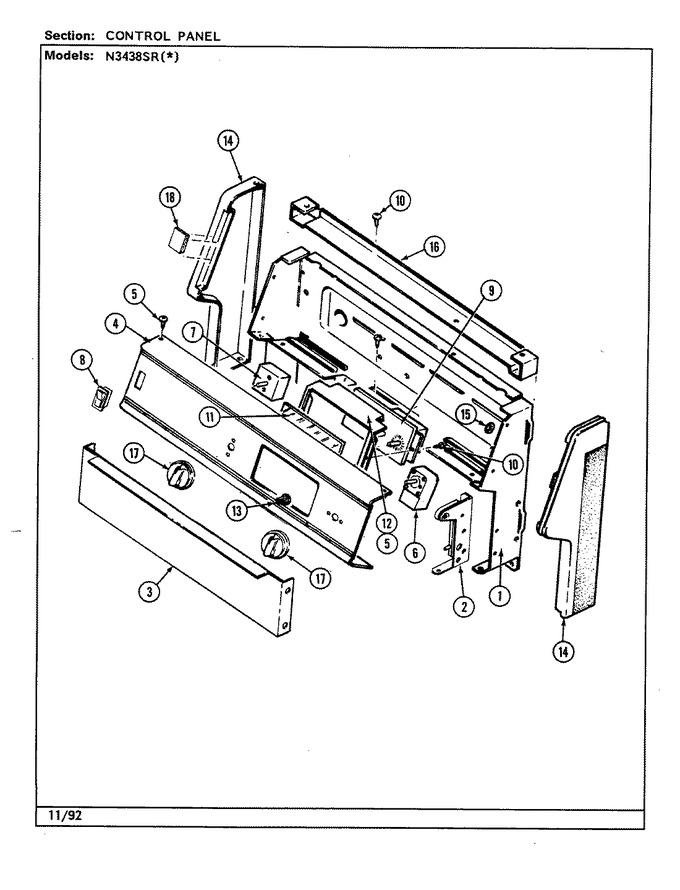

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 2 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- | ||||
| 2 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 3 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 4 | 7703P439-60 | Panel, Control | 01 |
|
- | ||||
| 5 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 6 | 7404P097-60 | Thermostat | 01 |
|
- | ||||
| 6 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 7 | 7403P236-60 | Switch, Selector | 01 |
|
- | ||||
| 8 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 9 | 7601P170-60 | Clock | 01 |
|
- | ||||
| 10 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 11 | 7902P109-60 | Glass, Clock | 01 |
|
- | ||||
| 11 | 7201P056-60 | Gasket | 01 |
|
- | ||||
| 12 | 3801F264-45 | Bracket, Clock | 01 |
|
- | ||||
| 13 | 7711P466-60 | Knob, Clock | 01 |
|
$ 14.72 | ||||
| 14 | 7726P060-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 14 | 7726P059-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 15 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 16 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 17 | 7737P032-60 | Knob, Infinite (blk) | 01 |
|
- | ||||
| 18 | 8010P085-60 | Spacer, Rubber | 01 |
|
- | ||||
| 18 | 5180D155-60 | Harness, Wire Backguard | 01 |
|
- | ||||
| 18 | 5125A363-60 | Wires, Loose | 01 |
|
- | ||||
| 19 | 8113P014-60 | Manual, Use & Care | 01 |
|
- | ||||
| 19 | 8113P038-60 | Insert, Instruction Sheet | 01 |
|
- |
