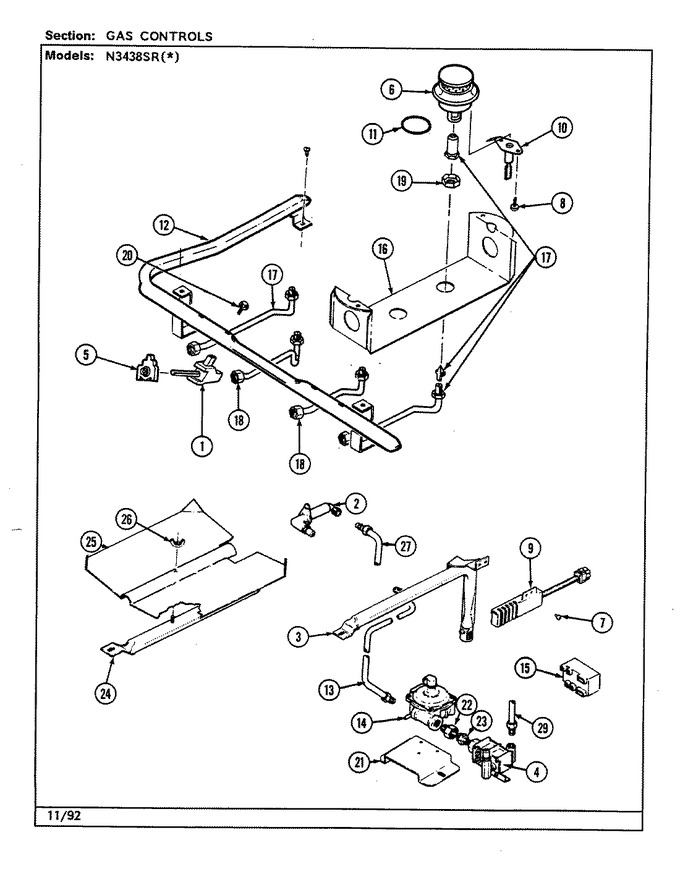

04 - Gas Controls
05 - Oven/base
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7502P219-60 | Valve, Top Burner | 01 |
|
- | ||||
| 2 | 3605F186-45 | Plate, Fitting | 01 |
|
- | ||||
| 2 | 7507P088-60 | Fitting, Broil Burner | 01 |
|
- | ||||
| 3 | 3807F446-45 | Support, Burner | 01 |
|
- | ||||
| 3 | 3403D043-45 | Burner, Bake | 01 |
|
- | ||||
| 4 | WP74006427 | Valve, Oven (Replaces: 7501P097-60) | 01 |
|
$ 313.44 | ||||
| 5 | 7403P284-60 | Switch, Burner | 01 |
|
$ 55.80 | ||||
| 6 | WP3412D024-09 | Sealed Burner Assy. (Replaces: 3412D017-09) | 01 |
|
Immediately | $ 92.69 | |||
| 7 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 01 |
|
$ 4.29 | ||||
| 8 | WP59002061 | Screw (Replaces: 7101P315-60) | 01 |
|
$ 6.98 | ||||
| 9 | 4005F421-45 | Cover,igniter | 01 |
|
- | ||||
| 9 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 01 |
|
Immediately | $ 60.44 | |||
| 10 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.6) | 01 |
|
- | ||||
| 11 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 01 |
|
Immediately | $ 92.69 | |||
| 12 | 7513P120-60 | Pipe, Manifold | 01 |
|
- | ||||
| 13 | 3414F103-44 | Tubing, Regulator/pipe (3/8``) | 01 |
|
- | ||||
| 13 | 7103P130-60 | Nut, Loxit (3/8``) | 01 |
|
$ 8.20 | ||||
| 14 | WP74006429 | Regulator, Pressure W/fitting (Replaces: 7510P050-60) | 01 |
|
$ 282.77 | ||||
| 15 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 15 | 12001596 | Module, Spark (Replaces: 7431P021-60) | 01 |
|
Immediately | $ 85.93 | |||
| 16 | 3807F451-45 | Support, Orifice Fitting | 01 |
|
- | ||||
| 17 | 7507P085-60 | Fitting, Orifice (r.r.) | 01 |
|
- | ||||
| 18 | 7507P084-60 | Fitting, Orifice (l.f. 9,200) | 01 |
|
- | ||||
| 19 | 7103P119-60 | Palnut | 01 |
|
- | ||||
| 20 | 7101P044-60 | Screw, Valve | 01 |
|
- | ||||
| 21 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 21 | 8020P007-60 | Bracket, Regulator | 01 |
|
- | ||||
| 22 | 7507M125-60 | Union Pipe Fitting (female) | 01 |
|
- | ||||
| 23 | 7507M124-60 | Union Pipe (male) | 01 |
|
- | ||||
| 24 | 3403D024-45 | Burner, Broil | 01 |
|
- | ||||
| 25 | 3601F217-45 | Baffle, Broil | 01 |
|
- | ||||
| 26 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 27 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 01 |
|
- | ||||
| 27 | 5140D035-60 | Wires, Igniter | 01 |
|
- | ||||
| 27 | 5195D112-60 | Harness,ign.switch To Module | 01 |
|
- | ||||
| 27 | 5125A312-60 | Harness, Loose/burner Box | 01 |
|
- |
