SELECT A DIAGRAM

01 - Cover

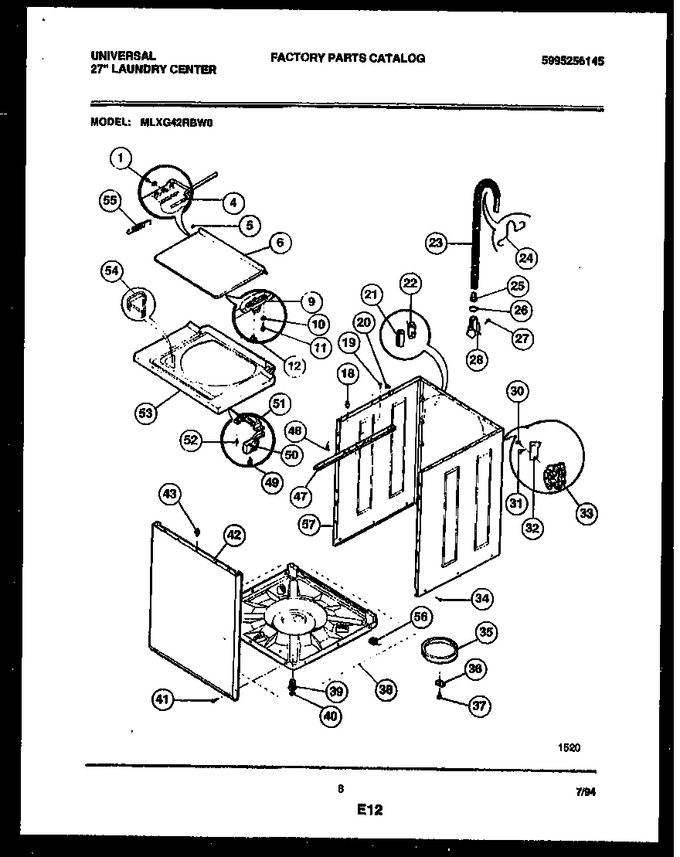

02 - Laundry Body Parts


03 - Motor, Blower And Idler Arm Assembl


04 - Console And Control Parts


05 - Cabinet Parts


06 - Tub Detail


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303211089		Screw (2)		Appelez-nous	-
4	5304489657		Bar-hinge   (Replaces: 3205250)				$ 82.93
5	3204362		Grommet		Appelez-nous	-
6	5303212873		Lid-almond		Appelez-nous	-
6	5303212872		Lid-white			Immediately	$ 345.16
9	131390000		Strike-lid   (Replaces: 3204367)				$ 55.19
10	5308002408		Washer		Appelez-nous	-
11	3204368		Screw				$ 13.01
12	134075500		Bumper   (Replaces: 3204369)				$ 17.35
18	3204373		Locating Pin				$ 4.99
19	131168200		Screw			Immediately	$ 14.18
20	3204374		Slide Pin				$ 78.67
21	5308014903		Capacitor		Appelez-nous	-
22	5303161252		Bracket		Appelez-nous	-
23	131210200		Drain Hose				$ 59.21
24	5303204987		Retainer		Appelez-nous	-
25	3204375		Check Valve				$ 48.06
26	131127616		Clamp		Appelez-nous	-
27	131205100		Screw			Immediately	$ 14.18
28	3204376		Coupler		Appelez-nous	-
30	131122100		Screw		Appelez-nous	-
31	5303015671		Screw		Appelez-nous	-
32	3204378		Bracket-water Valve		Appelez-nous	-
33	131258000		Valve-water		Appelez-nous	-
34	131205500		Screw (7)				$ 13.46
35	5308002385		Snubber Ring				$ 54.86
36	3204380		Shipping Block				$ 12.29
37	131102900		Shipping Screw		Appelez-nous	-
38	5303300247		Base		Appelez-nous	-
39	5303272067		Leveling Leg & Pad		Appelez-nous	-
40	5303004083		Pad-leveling Leg		Appelez-nous	-
41	131302800		Screw   (Replaces: 131258400)			Immediately	$ 26.58
42	131104303		Panel - Front - White				$ 309.70
42	5303931754		Panel Front - Almond		Appelez-nous	-
43	131150000		Pin-locating		Appelez-nous	-
47	131106701		Bracket- Rh		Appelez-nous	-
48	08001578		Screw		Appelez-nous	-
49	131243800		Screw				$ 10.46
50	3205646		Lid Lock		Appelez-nous	-
51	3204391		Bracket, Lid Lock		Appelez-nous	-
52	08002420		Rivet (3)		Appelez-nous	-
53	5303212875		Panel Top-almond		Appelez-nous	-
53	5303212874		Panel Top-white		Appelez-nous	-
54	3204394		Dispenser-bleach				$ 59.96
55	134890500		Spring-assist   (Replaces: 5303212876)				$ 19.85
56	5303201463		Pad-self Level (2)				$ 6.62
57	131207100		Body-white		Appelez-nous	-
57	131207101		Body-almond		Appelez-nous	-
47A	131091001		Bracket- Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
