SELECT A DIAGRAM

01 - Cover


02 - Laundry Body Parts


03 - Motor, Blower And Idler Arm Assembl


04 - Console And Control Parts


05 - Cabinet Parts


06 - Tub Detail


07 - Transmission Parts

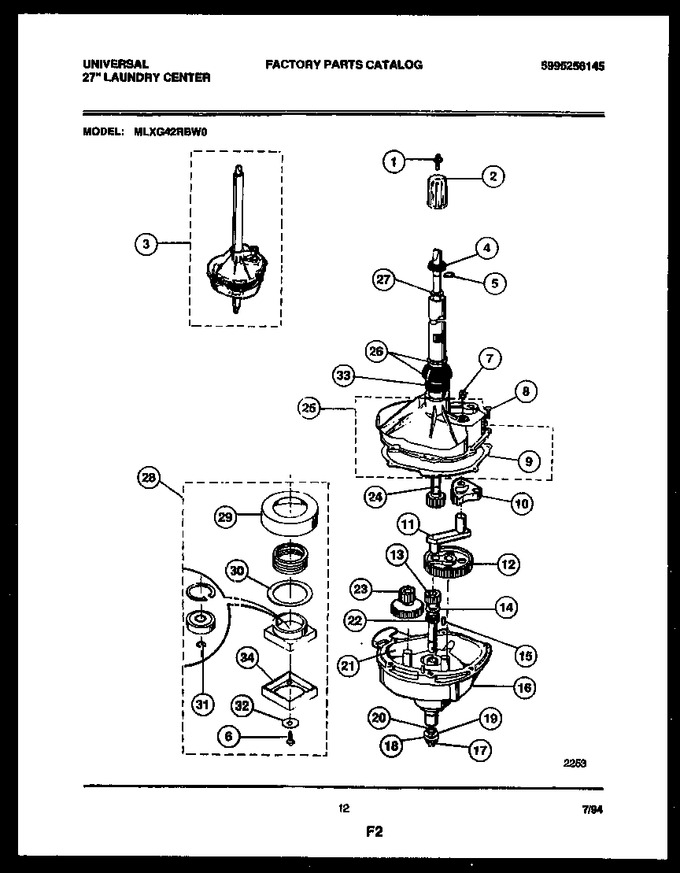

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131206800		Stud				$ 48.20
2	3204462		Hub-drive		Appelez-nous	-
3	134735700		Transmission-complete   (Replaces: 5308057580)				$ 820.03
4	5303161307		Seal-upper, Lip			Immediately	$ 21.27
5	5303161223		Ring-retaining				$ 10.24
6	5308027582		Screw		Appelez-nous	-
7	5303161224		Plug-pipe		Appelez-nous	-
8	08002804		Screw (6)		Appelez-nous	-
9	5308015778		Gasket				$ 33.18
10	5308011268		Gear-sector		Appelez-nous	-
11	5303161169		Rod-connecting		Appelez-nous	-
12	5308015496		Gear-crank		Appelez-nous	-
13	5308014905		Shaft-lower		Appelez-nous	-
14	5303161226		Washer		Appelez-nous	-
15	5303161227		Pin		Appelez-nous	-
16	5303912535		Housing-lower		Appelez-nous	-
17	5303161223		Ring-retaining				$ 10.24
18	5308002475		Washer-spacer		Appelez-nous	-
19	5303161226		Washer-thrust		Appelez-nous	-
20	5303161173		Seal-lower Lip				$ 9.36
21	3005242		Oil-transmission (1 Qt)		Appelez-nous	-
22	5303161174		Small Lgs Spring				$ 22.10
23	5303161175		Gear-idler		Appelez-nous	-
24	5308015507		Shaft-agitator		Appelez-nous	-
25	5303205527		Housing-upper		Appelez-nous	-
26	5303279394		Seal-tub				$ 85.72
27	5303161232		Washer		Appelez-nous	-
28	5308950058		Bearing-housing Pkg		Appelez-nous	-
29	5303161182		Sleeve-clutch Coil		Appelez-nous	-
30	5308057430		Washer-clutch Coil		Appelez-nous	-
31	5308015536		Ring-retaining		Appelez-nous	-
32	5303207426		Rubber Spacer (2)				$ 9.21
33	5303272073		Slinger				$ 29.82
34	5377009100		Cushion		Appelez-nous	-
*46659	5303161222		Shim-drive Hub				$ 7.12
