SELECT A DIAGRAM
01 - Cover

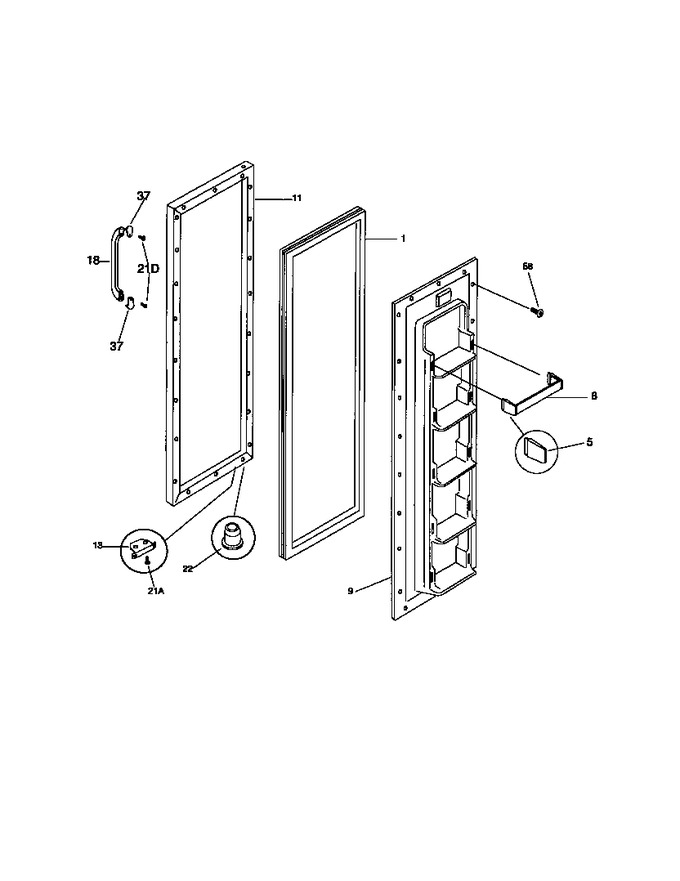

02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215734311 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 5 | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 | ||||
| 8 | 215472200 | Rack-door, W/end Caps, (5) |
|
$ 129.05 | |||||
| 9 | 5303288955 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 215475501 | Panel-frzr Door, White, W/foam Insulatn |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 18 | 215339618 | Handle-door, Black |
|
- | |||||
| 21 | 215659600 | Screw-handle Mtg,hex Head, 10-32 X 1/2 |
|
- | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215361418 | Trim-handle, Black |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *46600 | 215361200 | Foam Strip, Handle Mtg Hole |
|
- | |||||
| *46601 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
