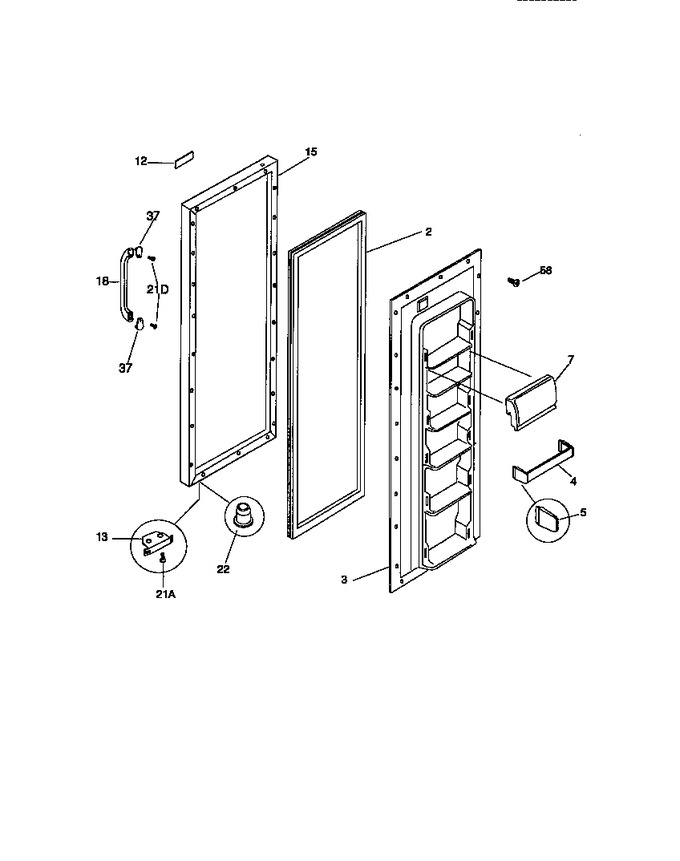

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734312 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 5303288953 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215472100 | Rack-door, W/end Caps, (5) |
|
$ 128.36 | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 5303296797 | Door-dairy |
|
- | |||||
| 12 | 215503701 | Frame-nameplate, White, W/mtg Tape |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 215475401 | Panel-refr Door, White, W/foam Insulatn |
|
- | |||||
| 18 | 215339618 | Handle-door, Black |
|
- | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 21 | 215659600 | Screw-handle Mtg,hex Head, 10-32 X 1/2 |
|
- | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215361418 | Trim-handle, Black |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *46602 | 215361200 | Foam Strip, Handle Mtg Hole |
|
- | |||||
| *46603 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
