SELECT A DIAGRAM

Diagram for 01 - Base & Drive (rev. E)
01 - Base & Drive (rev. E)

Diagram for 02 - Base & Drive (rev. F-k)
02 - Base & Drive (rev. F-k)

Diagram for 03 - Control Panel (rev. E)
03 - Control Panel (rev. E)

Diagram for 04 - Control Panel (rev. F-k)
04 - Control Panel (rev. F-k)

Diagram for 05 - Exterior (rev. E)
05 - Exterior (rev. E)

Diagram for 06 - Exterior (rev. F-k)
06 - Exterior (rev. F-k)

Diagram for 07 - Transmission & Related Parts (rev. E)
07 - Transmission & Related Parts (rev. E)

Diagram for 08 - Transmission & Related Parts (rev. F-k)
08 - Transmission & Related Parts (rev. F-k)

Diagram for 09 - Tub (rev. E)
09 - Tub (rev. E)

Diagram for 10 - Tub (rev. F-k)
10 - Tub (rev. F-k)

Diagram for 11 - Water Carrying & Pump Assy. (rev. E)
11 - Water Carrying & Pump Assy. (rev. E)

Diagram for 12 - Water Carrying (rev. F-k)
12 - Water Carrying (rev. F-k)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7793 Screw Appelez-nous -
1 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
1 35-2535 Panel, Control Appelez-nous -
2 35-2488 Cap, End (lt) Appelez-nous -
2 35-2487 Cap, End (rt) Appelez-nous -
3 25-7697 Screw Appelez-nous -
3 25-7851 Speedclip, End Cap To Top Appelez-nous -
3 34-9487 Plate, Reinforcement Appelez-nous -
4 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

5 53-0278 Trim, End Cap (lt) Appelez-nous -
5 53-0277 Trim, End Cap (rt) Appelez-nous -
6 25-7760 Screw Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

8 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
9 53-1676 Shield, Control Appelez-nous -
10 WP12990527 Screw, Sems   (Replaces: 25-3457) In-Stock Immediately $ 7.15

10 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

10 25-7853 Retaining Ring Appelez-nous -
10 35-2688 Shield, Control Panel (rear) Appelez-nous -
11 35-2419 Timer Appelez-nous -
12 25-0205 Screw Appelez-nous -
13 35-0180 Knob Asm Appelez-nous -
14 35-0498 Timer Knob Appelez-nous -
15 35-0119 Rotary Switch Appelez-nous -
15 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

16 35-0168 Selector Knob Appelez-nous -
17 35-0162 Rotary Switch Appelez-nous -
17 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

18 WP21001554 Switch, Pressure   (Replaces: 35-3283) Special Order $ 143.59

18 35-2536 Manual, Use & Care Appelez-nous -
18 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

18 WP21001554 Pressure Switch   (Replaces: 35-2145) Special Order $ 143.59


    View Diagram in Separate Window     Print Icon   Print Part List

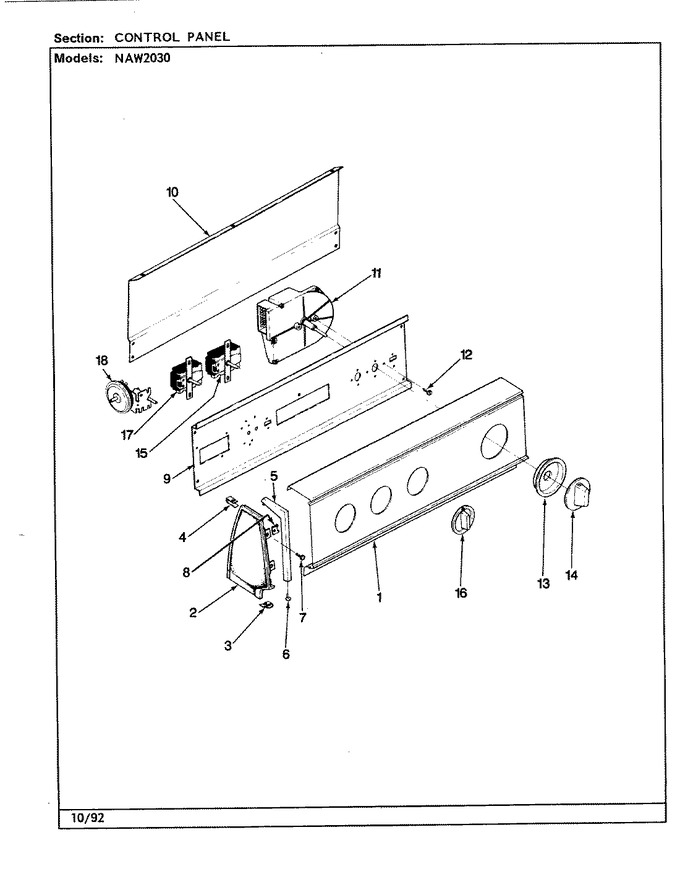

Diagram for NAW2030W
