Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2371 Agitator E Appelez-nous -
2 35-2062 Screw, Shoulder Type E Appelez-nous -
3 WP22002933 Screw   (Replaces: 25-7914) E Special Order $ 6.91

4 33-6241 Cap E Appelez-nous -
5 33-2060 Ctrpost Bearing E Appelez-nous -
6 35-2061 Gasket, Tub To Housing E Appelez-nous -
7 33-8799 Reinf Plate E Appelez-nous -
8 25-7783 Screw E Appelez-nous -
9 35-2328 Seal, Tub Top E Special Order $ 49.43

10 25-7330 Rubber Washer E Appelez-nous -
11 35-2381 Basket Assy-white E Appelez-nous -
12 35-2023 Tub Support E Appelez-nous -
13 35-2038 Tub E Appelez-nous -
14 35-2034 Top, Tub E Appelez-nous -
14 35-2262 Shield, Tub Top E Appelez-nous -
15 33-9827 Rinse Dispenser E Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

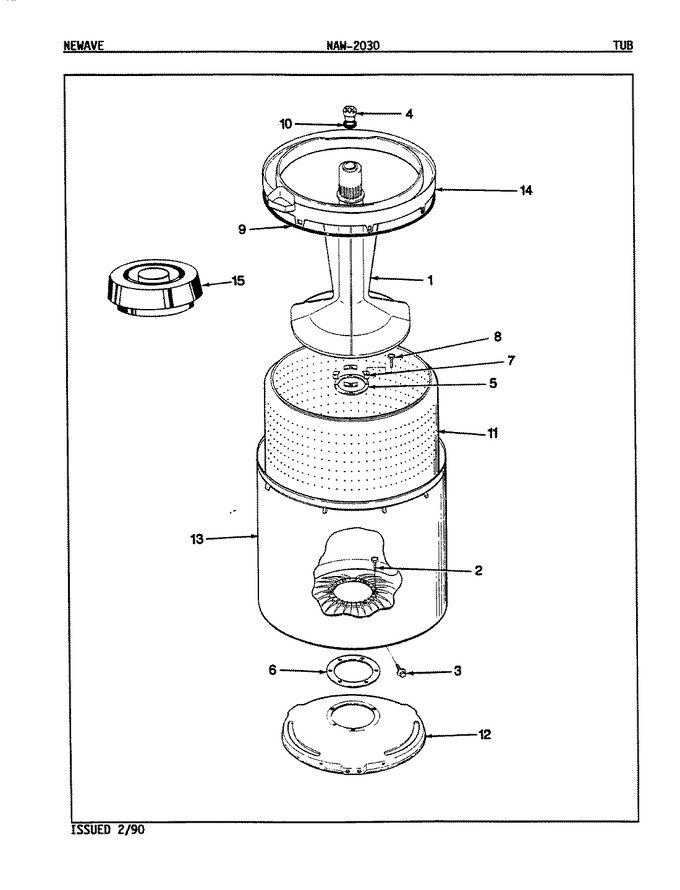

Diagram for NAW2030W
