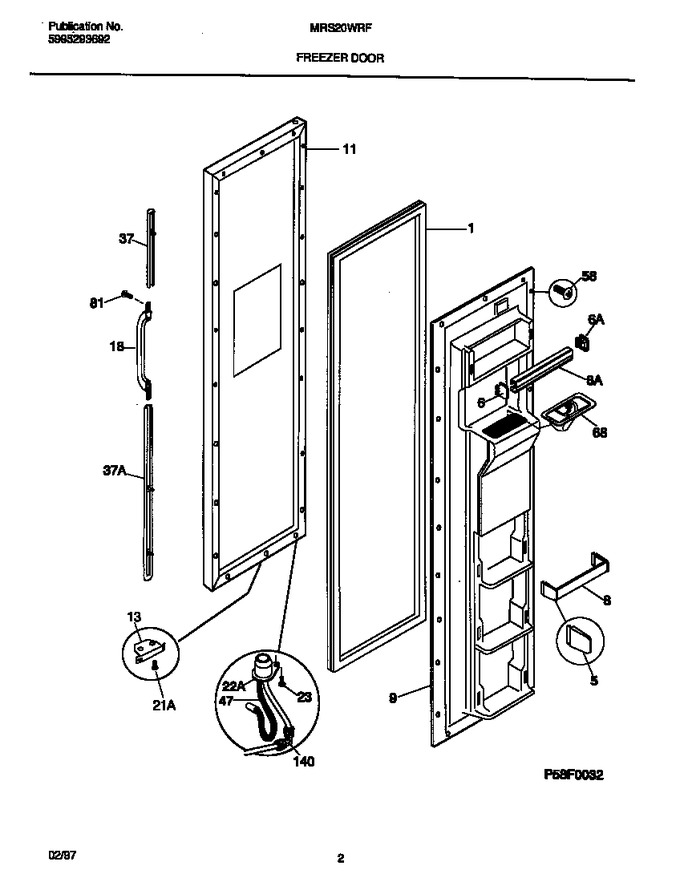

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734311		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
6	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
6	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
8	215472200		Rack-door, W/end Caps, (5)				$ 129.05
8	215806341		Rack-door		Appelez-nous	-
9	218748601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917907		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218668401		Handle-door, White				$ 74.97
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215867083		Trim-handle, White, Upper, With Snap Lock				$ 73.07
37	215867082		Trim-handle, White, Lower, With Snap Locks				$ 78.21
47	218741300		Harness-wiring, Frzr Door				$ 117.94
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
68	218020600		Chute-ice		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
140	218518700		Elbow-water Tube				$ 61.22
*44800	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*44801	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim, Snap-in (not Illustrated)				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
