SELECT A DIAGRAM

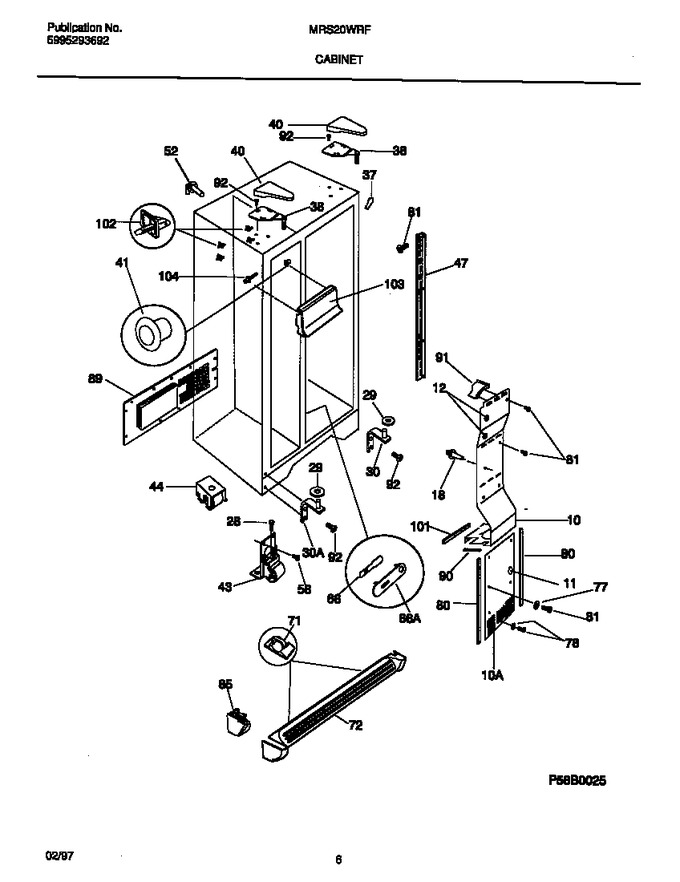

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Container/drive


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5303289035		Cover-evap Coil, Lower		Appelez-nous	-
10	5303289038		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303001147		Plug-harness Hole   (Replaces: 215230400)				$ 22.30
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
30	5303289060		Bracket-lower Hinge, W/hinge Pin		Appelez-nous	-
30	215009000		Bracket-lower Hinge,lh,w/hinge Pin		Appelez-nous	-
37	5303321081		Trim-cabinet Corner, White				$ 8.82
40	5303318773		Cover-upper Hinge, White				$ 42.47
44	218738300		Roller Assy, Rear, (2)				$ 51.98
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
52	215454600		Tube-water Inlet				$ 81.11
58	5308002748		Screw		Appelez-nous	-
66	215050201		Damper-meat Keeper		Appelez-nous	-
66	218171301		Cover-meat Kpr Dmpr				$ 45.09
71	218515401		Clip-grille				$ 17.72
72	218359613		Grille/kickplate, White				$ 151.36
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
80	218154003		Gasket-coil Cover, Air Duct Cover		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
85	218359801		Cover-lower Hinge, White				$ 48.72
89	5303288947		Cover-machine Compt		Appelez-nous	-
90	215022602		Seal-foam		Appelez-nous	-
91	218769900		Deflector-air, Air Duct Cover		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
101	215305701		Seal-foam		Appelez-nous	-
102	215134700		Support, Motor Brkt, & Shelf				$ 18.17
103	218748000		Door-ice Access		Appelez-nous	-
*44803	5308009617		Washer, Ext Tooth Lock, No. 10		Appelez-nous	-
*44805	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
*44806	5308016571		Plug-button, Cabinet Liner				$ 4.79
104A	5303001211		Support-ice Access Dr		Appelez-nous	-
104B	3001212		Screw-ice Dr Supt, Cr Spcl Pan Hd, 8-15a X 1.625 (not Illustrated)		Appelez-nous	-
18A	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
18B	5303289044		Support-air Duct Cvr, 1.83`` Long (not Illustrated)		Appelez-nous	-
29A	215003200		Washer, .40x.63x .16,nylon				$ 54.86
29B	215314300		Washer, .40 X .75 X .06, Nylon		Appelez-nous	-
29C	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
30A	218730800		Tapping Plate, Rh (not Illustrated)		Appelez-nous	-
30B	218730700		Tapping Plate, Lh (not Illustrated)				$ 28.08
38A	218215213		Bracket-upper Hinge, With Closer, White, Rh		Appelez-nous	-
38B	218215215		Bracket-upper Hinge, With Closer, White, Lh		Appelez-nous	-
41A	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
41B	5304500407		Grommet, Shelf Mtg, Lh (not Illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
43A	218615300		Roller Assy, Front, (2)		Appelez-nous	-
43B	5308017044		Screw-roller Mtg, Spcl Ind Hex Hd, 5/16-18(23) X 7/8 (not Illustrated)				$ 6.34
